Description

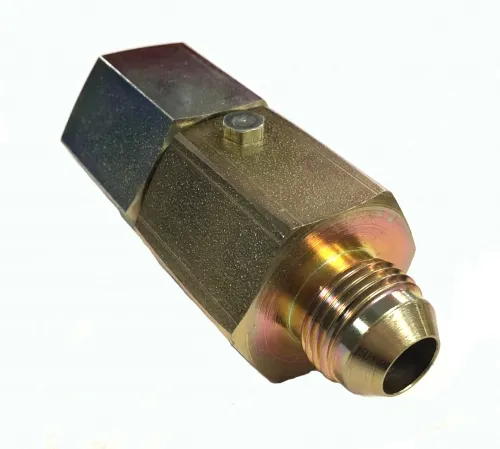

1/2″ JIC In-Line Hydraulic Hose Swivel Joint, 3000 PSI 1/2″ JIC Male X 1/2″ NPTF Female
Full flow inline JIC swivel adapter for use on hydraulic hose lines. Rotating swivel joints allow for free movement of hoses and piping. With a one piece barrel/stem design, these hydraulic hose swivel joints are intended to fit into tight areas and prevent premature seal and wear leaks. Product Specifications:
- 1/2″ male JIC barrel connector
- 1/2″ female JIC stem connector
- 3000 PSI
- temp range: -300F to 2500F
- weight: 0.7 lbs.
Refer to image below for measurements:
- A) overall length: 3.13″
- B) barrel length: 1.90″
- C Hex: 1.25″
- D Hex: 1.25″
- T1 threads: 3/4″-16 UNF-2A
- T2 threads: 1/2″-14 NPTF
