Description

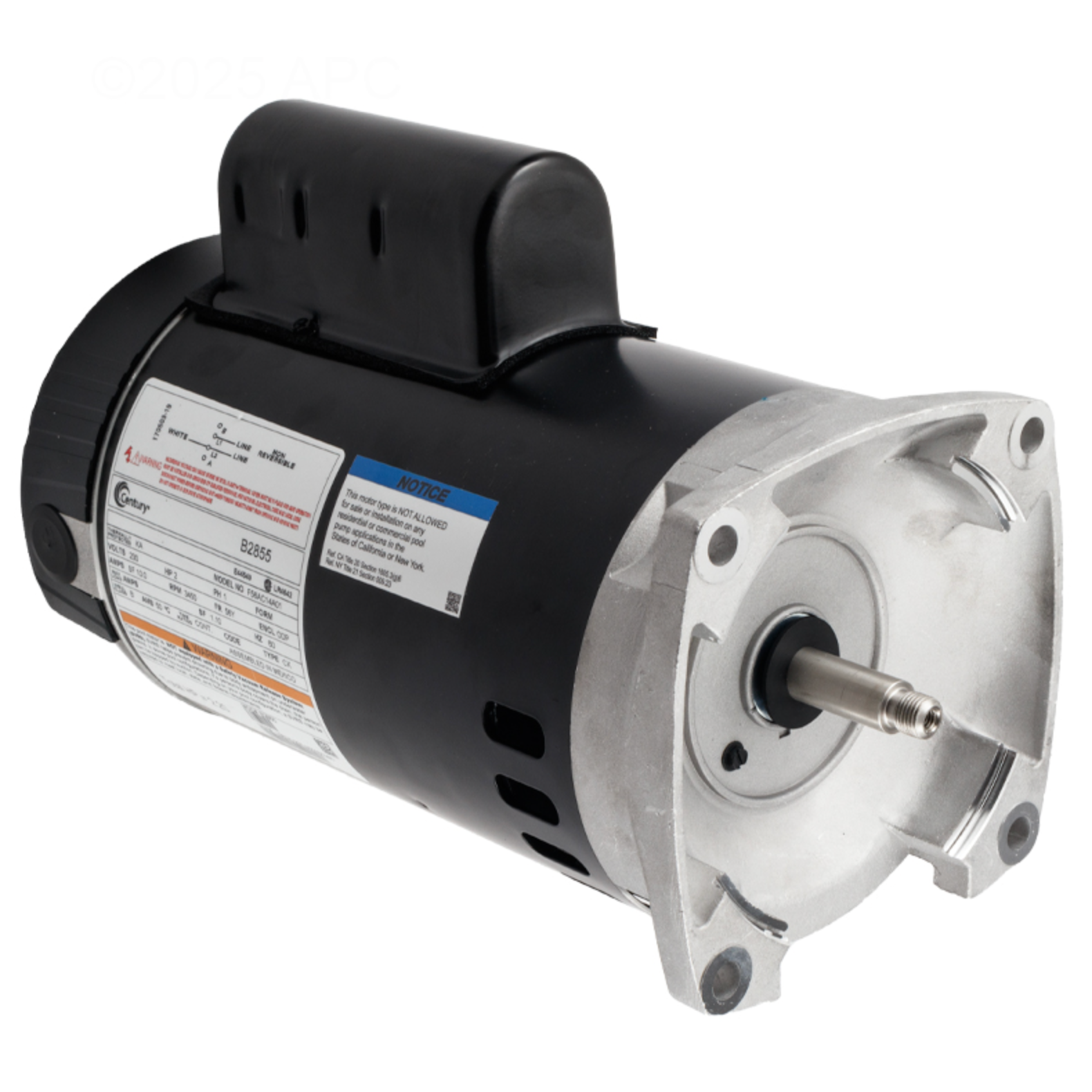

Century B2855 2 HP Up-Rated Square Flange Pool Pump Motor
The Century B2855 is a high-performance, energy-efficient replacement motor designed for a wide variety of popular pool and spa pumps. Featuring a Square Flange (56Y Frame) design, this 2 HP up-rated motor is built to handle the demanding environment of a pool equipment pad with quiet operation and long-term durability.
Key Features:
- Square Flange Design: Specifically engineered for pumps that require a 4-bolt square flange mount (common on Hayward, Pentair, and Sta-Rite models).
- Stainless Steel Shaft: Built with a corrosion-resistant threaded shaft to ensure a long life in salt or chlorinated water.
- High-Quality Bearings: Features permanently lubricated, double-sealed ball bearings for reduced noise and cooler operation.
- Standard 56Y Frame: A direct replacement for many OEM motors, making the swap-out process fast and straightforward.
Pump Compatibility:
The B2855 commonly fits the following pump models (check your manual for flange type):
- Hayward TriStar, Max-Flo II, and NorthStar
- Pentair WhisperFlo, Challenger, and Ultra-Flow
- Sta-Rite Max-E-Glas II and Dura-Glas II
Technical Specifications:
- Part Number: B2855
- Horsepower: 2.0 HP (Up-Rated)
- Service Factor (SF): 1.10
- Total Horsepower (THP): 2.2
- Voltage: 230V
- Frame: 56Y (Square Flange)
- Speed: Single Speed (3450 RPM)
