Description

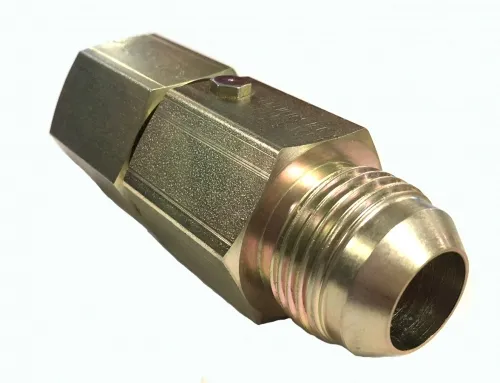

3/4″ JIC In-Line Hydraulic Hose Swivel, 3000 PSI 3/4″ JIC Male X 3/4″ NPTF Female
Full flow JIC inline swivel connectors for use on hydraulic hose lines. Rotating swivel joints allow for free movement of hoses and piping. With a one piece barrel/stem design, these hydraulic swivel joints are intended to fit into tight areas and prevent premature seal and wear leaks. Product Specifications:
- 3/4″ male JIC barrel connector
- 3/4″ female JIC stem connector
- 3000 PSI
- temp range: -300F to 2500F
- weight: 0.68 lbs.
Refer to image below for measurements:
- A) overall length: 3.32″
- B) barrel length: 2.09″
- C Hex: 1.25″
- D Hex: 1.25″
- T1 threads: 1-1/16″-12 UN-2A
- T2 threads: 3/4″-14 NPTF
