Description

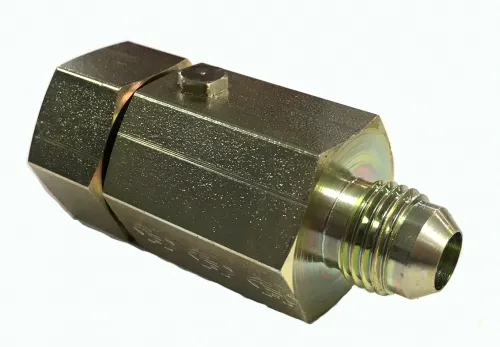

S8J12-JF12
Inline Swivel fluid power component configured with a -12 (3/4?) J-Male JIC barrel connector and -12 (3/4?) JF-Female JIC stem connector.
Specifications: Weight: 0.58 lbs Part Number: S8J12-JF12 Barrel Connector: 12 (3/4″) Male JICStem Connector: 12 (3/4″) Female PipeT1: 1 1/16-12T2: 1 1/16-12A: 2.89B: 2.09H Hex: 1.25D Hex: 1.25Vacuum: 29.5 in./Hg Temperature Range: -30°F to 250°F Max Working Pressure: 3,000 PSI
