Description

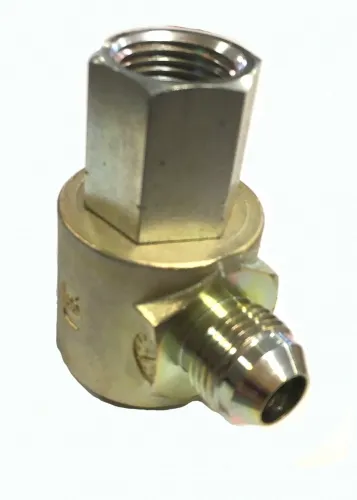

3/8″ NPSM 90 Degree Hydraulic Hose Swivel, 5000 PSI 3/8″ JIC Male X 3/8″ NPTF Female
90 degree high pressure swivel hose fitting extends hose life by allowing for flexibility and ease of maintenance. This hydraulic live swivel is designed with a Pressure Balance 90 degree elbow. View specifications for the swivel hydraulic hose fitting below.Product Specifications:
- 3/8″ male JIC barrel connector
- 3/8″ female pipe stem connector
- 9/16-18 JIC X 3/8″-18 NPTF threads
- 5000 PSI
- temp range: -300F to 2500F
- weight: 0.48 lbs.
Refer to image below for measurements:
- A) overall length: 2.50″
- B) 90 degree elbow: 1.65″
- C) height: 1.64″
- D) height: 1.18″
- T1 threads: 9/16″-18 UNF-2A
- T2 threads: 3/8″-18 NPTF
- H Hex: 1.00″
- J Hex: 0.87″
- K Diam.: 0.92″
