Description

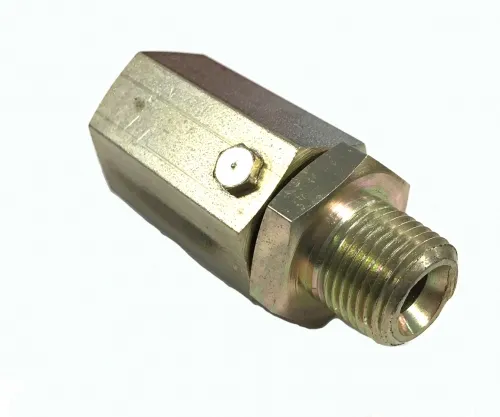

3/8″ NPTF In-Line Hydraulic Hose Swivel, 3000 PSI 3/8″ NPTF Female X 3/8″ NPTF Male
Inline swivel joint for use on hydraulic hose lines. Rotating hydraulic hose connectors allow for free movement of hoses and piping. With a one piece barrel/stem design, these hydraulic inline swivel joints are intended to fit into tight areas and prevent premature seal and wear leaks.Product Specifications:
- 3/8″ female pipe thread barrel connector
- 3/8″ male pipe stem connector
- 3/8″-18 NPTF threads
- 3000 PSI
- temp range: -300F to 2500F
- weight: 0.39 lbs.
Refer to image below for measurements:
- A) overall length: 2.41″
- B) barrel length: 1.55″
- C Hex: 1.00″
- D Hex: 1.00″
- T1 threads: 3/8″-18 NPTF
- T2 threads: 3/8″-18 NPTF
