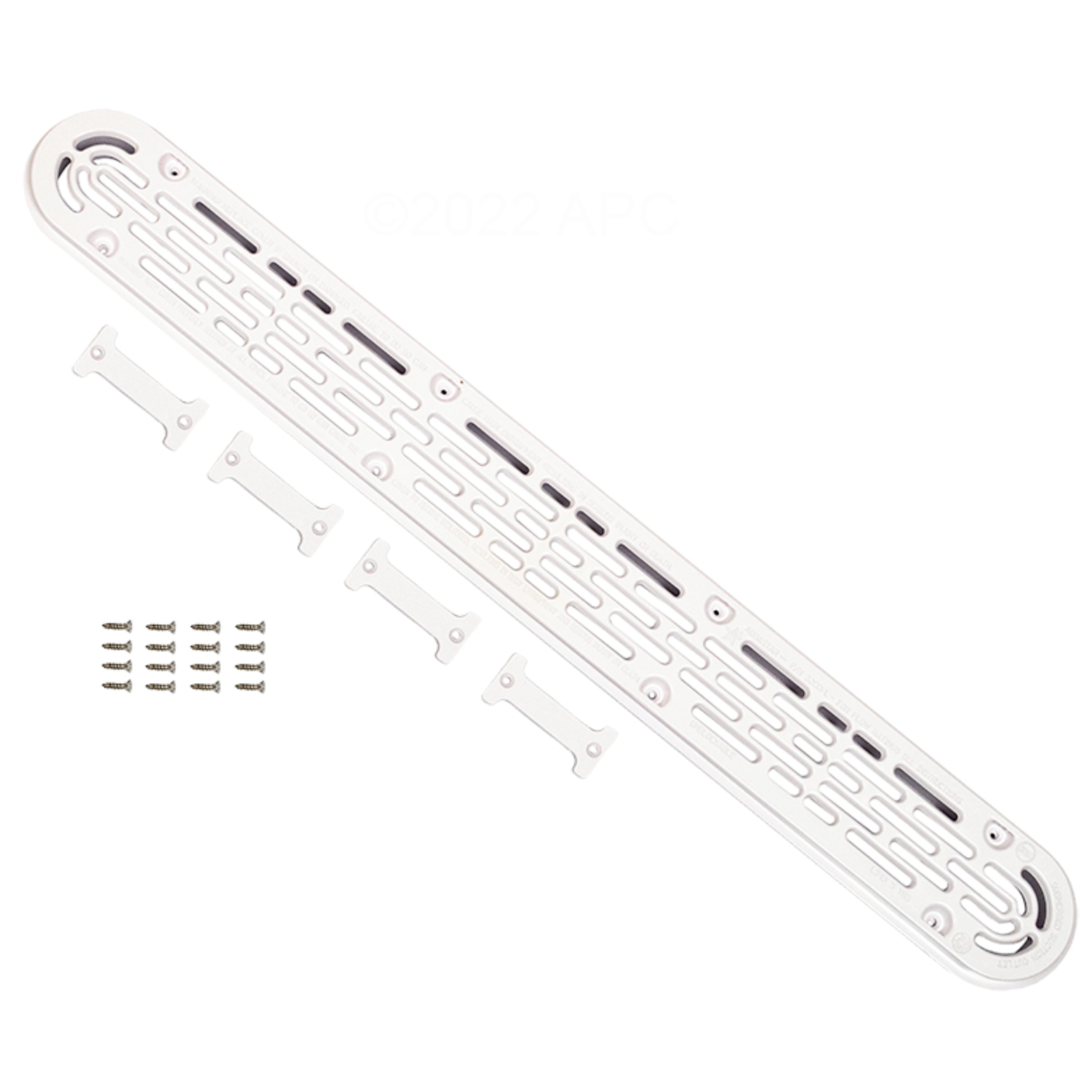

AquaStar 32″ Channel Drain with Mud Frame and Flat Grate – VGB Compliant Suction Outlet, White
Keep your pool compliant and swimmers safe with the AquaStar 32″ Channel Drain with Mud Frame and Flat Grate. This VGBA-certified anti-entrapment suction outlet is engineered from UV-resistant polymers for long service life and is ideal for floor, wall, or combination floor/wall applications in new construction or retrofit projects.
Key Features:
- VGBA Anti-Entrapment Certified: Meets federal anti-entrapment requirements for safe suction outlet design.
- High-Flow Capacity: Supports up to 316 GPM single-floor installation, 208 GPM single-wall, or 122 GPM combined floor/wall use.
- UV-Resistant Polymer: Engineered thermoplastic components pass ASTM G154 UV exposure testing for long-term color and structural stability.
- Integrated Mud Frame: Simplifies installation and provides a clean, finished appearance around the grate.
- Construction Support: Includes disposable “dogbone” supports to help retain shape during pouring and finishing.
- Industry-Standard Compliance: Meets or exceeds ANSI/APSP 16-2011 and NSF 50-2008 standards.
Technical Specifications:
- Length: 32 in
- Color: White
- Open Area: 25.9 sq in
- Max Flow (Single Floor): 316 GPM @ 3.9 fps
- Max Flow (Single Wall): 208 GPM @ 2.6 fps
- Max Flow (Floor/Wall): 122 GPM @ 1.5 fps
- Minimum Sump Depth: 3 in along entire cover length
- Certifications: VGBA, ANSI/APSP 16-2011, NSF 50-2008
- Part Number (MPN): 32CDFLFR101
