Description
S8J10-JF10

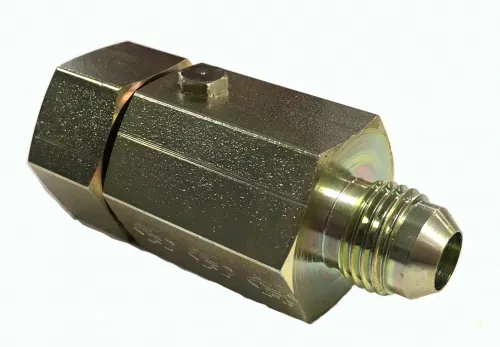

Inline Swivel fluid power component configured with a -10 (5/8?) J-Male JIC barrel connector and -10 (5/8?) JF-Female JIC stem connector.
Specifications: Weight: 0.62 lbs Part Number: S8J10-JF10 Barrel Connector: 10 (5/8″) Male JICStem Connector: 10 (5/8″) Female PipeT1: 7/8-14T2: 7/8-14A: 2.8B: 2H Hex: 1.25D Hex: 1.25Vacuum: 29.5 in./Hg Temperature Range: -30°F to 250°F Max Working Pressure: 3,000 PSI
