Description

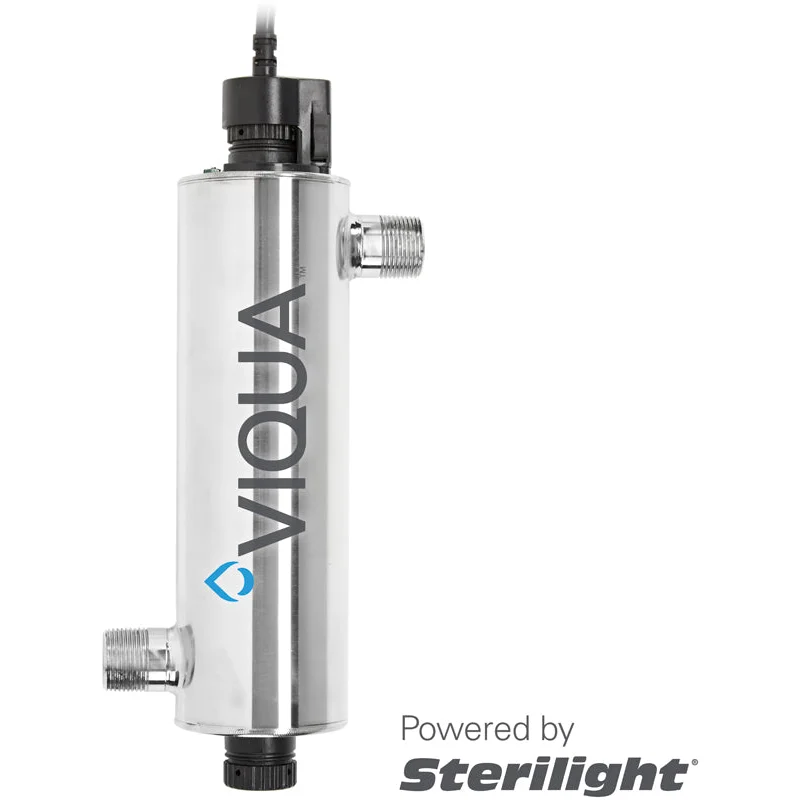

VIQUA Sterilight VH200 Whole-House UV Water Disinfection System
|
Designed to treat the water at every tap, VIQUA HOME product line ensures high-quality water throughout your whole home protecting your family and your appliances and fixtures. VIQUA HOME Series Ultraviolet Disinfection Systems are specifically designed to be plumbed in where your water enters your home or facility for point-of-entry water treatment in homes or light commercial applications where microbiological control is required.
VIQUA Sterilight VH200 UV disinfection system intended for home use, has high output lamp technology allowing for a more compact design without compromising performance. High output lamp technology allows for a more compact footprint without compromising performance.
Features of VIQUA HOME Series Sterilight Water Disinfection Systems
-
VIQUA UV Systems are equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses not visible to the naked eye.
-
Specially designed and tested Sterilume-EX UV lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification.
-
Sterilight UV Water Systems are simple to maintain and service allowing for easy lamp replacement.
-
VIQUA UV Systems are built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
-
The UV Lamp controller visually displays the remaining lamp life and will go into alarm if the lamp fails. The controller has a sealed case to prevent damage from accidental water intrusion and is fully CSA and CE compliant.
Benefits of UV Disinfection
-
99.99% destruction of bacteria, virus & protozoan cysts (Giardia Lamblia & Cryptosporidium) at rated flow.
-
Chemical-free
-
Easy to install and service
-
Economical and energy efficient
|
|
Specifications for VIQUA VH200
|
|
|
AMI Part Number: |
VH200 |
|
Recommended Flow Rate:* |
9 GPM (34 LPM) |
|
Plug: |
N. America (NEMA P-15) |
|
Voltage: |
100-240v/50-60Hz |
|
Power Consumption: |
35W |
|
Connection: |
3/4″-1″ NPT Combo |
|
Chamber Dimensions: |
3 1/2″ x 17 3/4″ |
|
Lamp Life: |
9,000 Hours |
|
Lamp Cord: |
Approximately 5 feet |
|
Max. Operating Pressure: |
125 psi (8.62 bar) |
|
Influent Water Temperature: |
36-104F (2-40C) |
|
Ambient Air Temperature: |
32-104F (0-40C) |
|
Chamber Material: |
304SS |
|
|
*Factory recommended flow rate is calculated at a UV dose of 30 mj/cm. See manufacturer’s specification sheet for flow rates at different doses.
What Size of UV
System Do I Need?
|
|
Choose a UV System with a recommended flow that meets or exceeds your peak flow rate. When in doubt, always choose the next size up.
Don’t know your flow rate?
Visit our Flow Rate & Sizing Guidefor help.
|
|
Optional Equipment (sold separately)
|
|
|
440179 |
Temperature Management Valve |
|
|
Replacement Parts for VIQUA VH200
|
|
| S200RL-HO |
UV Lamp Only for VIQUA VH200 |
| QS-001 |
UV Quartze Sleeve Only for VIQUA VH200 |
| BA-ICE-CL |
Controller Kit for VIQUA Home Series |
| 410867 |
Lamp O-Ring for VIQUA UV |
| RN-001 |
Retaining Nut for VIQUA UV |
| 410076 |
3.5″ Mounting Brackets for VIQUA UV |
|
|
|
Typical Installation of VIQUA Whole-House POE UV. (Click to Enlarge.)
(click to enlarge)
Note: VIQUA VH200 replaces the Sterilight SC200 UV system. VIQUA HOME Series replaces Sterilight Silver Series, which is now obsolete by the manufacturer, although some models of the Silver Series are still offered under the HOME series.
