Description

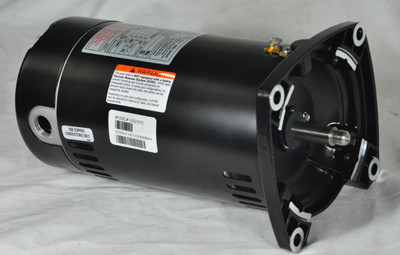

The A.O. Smith USQ1072 Motor is an essential choice for pool owners seeking a high-performance, durable motor for their pool pump systems. Designed with a square flange and a robust construction, this motor ensures reliable operation and efficiency.
- Horsepower – 0.75 HP, providing sufficient power for most residential pool applications.
- Total Horsepower – 0.95 THP, offering a blend of power and energy efficiency.
- Voltage – Dual voltage capabilities (115V/230V) allow for flexible installation and use.
- Service Factor – 1.27 SF, higher than standard for extended life and better performance.
- Amperage – 13.4A at 115V and 6.7A at 230V, optimizing electrical usage.
- Speed – Single speed operation with a maximum RPM of 3450.
- Motor Type – Pool, specifically designed for pool pump applications.
- Frame Type – 48Y with a square flange for secure mounting.
- Motor Shaft Type – Threaded, allowing easy and secure connection to the pump mechanism.
- Motor Style – Square Flange, commonly used in pool pumps for its robust mounting capability.
- Enclosure Type – Open Drip Proof, which protects the motor against water drips and splashes.
- Bearing Type – Sealed Ball Bearings, ensuring long-lasting operation and minimal maintenance.
- Motor Thermal Protection – Automatic Reset to prevent damage from overheating.
- Standards – CSA Certified, ensuring compliance with North American safety standards.
- Material – Constructed from rolled steel and 303 stainless steel for the shaft, enhancing the motor’s durability and corrosion resistance.
- Insulation Class – Class B, providing good thermal protection.
Additional Information:
Alternate Part Numbers – 389886, 5231A, _USQ1072, AOS-60-5206
