Description

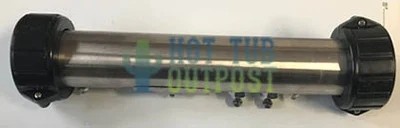

Replacement 5.5kW spa heater that is tubular and 12 inches long for 2 inch plumbing.
Applied Computer Controls replacement heater.Stainless steel flow through replacement heater assembly.
Measures 12″ x 2″ and has (2) mounting studs, pressure switch tap at 0 degrees from the heater terminals, external thermowell and a 5.5kW heater element.
This heater type used on the ACC (Applied Computer Controls) STMD1000 series control system.
| Housing Configuration | Straight Flow Through |
| Heater Length | 12″ |
| Lead End Terminal Location | 3-1/4″ |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 9-5/8″ From Leading End |
| Kilowatts | 1.375kW, 5.5kW |
| Voltage | 115v, 230v |
| Sensor Stud Orientation | 12 O`Clock |
| Mounting Stud Type | Fixed |
| Heater Size | 2″ |
| Heater Application | Applied Computer Controls |
Pressure switch not included
Also replaces heaters 20-00348 , 20-00348-C , 26-0313N-7S-K , 26-1004-7S-K , 26-1004-7T-K , B24055K , C2550-0313N , C2550-1004 , C2550-1004TI , C2550-1004TI-1
