Description

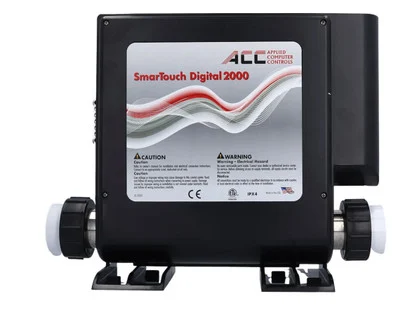

Applied Computer Control System SMTD2PBLCA-4 for 2 pumps and a blower operates at 240V and includes a 5.5kW heater.
THis is the ACC 2000 pack with keypad SC-2020 included.
Control System, (Kit), ACC SMTD2000, 240V Only (4-Wire), 5.5kW, Pump1, Pump2 (1 or 2 Speed), Blower, with AMP Cords and a SC-2020 Control Panel.
The 2000 can control a 2 speed primary pump, a 2 speed secondary pump ( or dual pumps single speed) , a single speed air blower ( or a fourth pump), a 12 volt spa light, an auxiliary light and an ozonator.
The system comes with a calibrated pressure switch, a heavy duty 2 pole contact to control the 5.5 KW attached heating element.
Specs
- Main Circuit – 1 or 2 -Speed Pump 240V
- 2nd Circuit – 1 or 2- Speed Pump 240V
- 3rd Circuit – 1- Speed Blower 120/240V
- Control Panel- Included
- Heater Style – Straight/Fixed,
- Wattage – 1.4/5.5kW System
- Voltage – 240V Only (4-Wire)
- Component Configuration – Pump1 + Pump2 + Blower
Replaces 3-73-3104SMTD-2000APAXLD (ACC)
