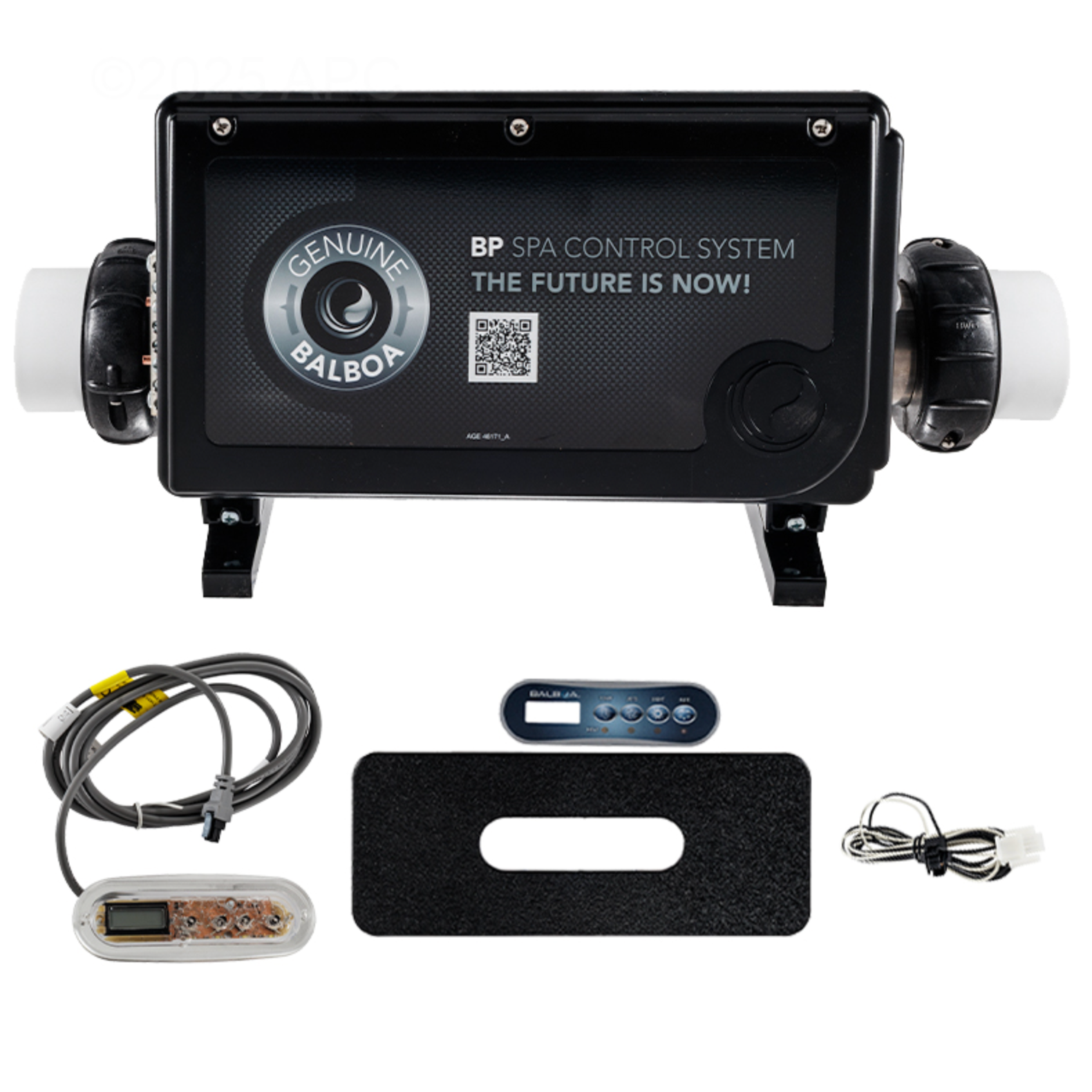

Balboa BP100G2 Spa Control System with TP200T Keypad and 5.5kW Heater (G6502)
The Balboa G6502 BP100G2 spa control bundle steps up from the 4.0kW model with a more powerful 5.5kW heater for faster heat-up times and better performance in colder climates. Paired with the TP200T 4-button topside panel, it’s a complete solution for 1 or 2-pump hot tubs that also supports ozone, audio, circulation pumps, and lighting.
Key Features:
- 5.5kW Heater: Higher wattage heats spa water faster and maintains temperature efficiently in cold weather.
- Versatile Equipment Control: Runs 2-speed Pump 1, 1-speed Pump 2, ozone, audio/video, circ pump, and light from a single pack.
- TP200T Topside Panel: Sleek 4.3″ x 1.59″ 4-button keypad controls Temp, Jets, Light, and Aux with clear digital readout.
- Flexible Mounting: Install with included feet or optional metal brackets (P/N 32068, sold separately).
- Dual-Voltage Support: Works on 115V or 230V 4-wire service for broad compatibility.
- Wi-Fi & Panel Compatibility: Works with all Balboa TP series panels and SpaTouch, plus optional bwa Wi-Fi module.
Technical Specifications:
- Part Number (MPN): G6502
- Control Pack: BP100G2
- Topside Panel: TP200T (4-button)
- Heater: 5.5kW
- Supply Voltage: 115V or 230V, 4-wire
- Pump Support: Pump 1 (2-speed) + Pump 2 (1-speed)
- Accessory Outputs: Ozone, audio/video, circ pump, light
- Frequency: Auto-detects 50Hz / 60Hz
