Description

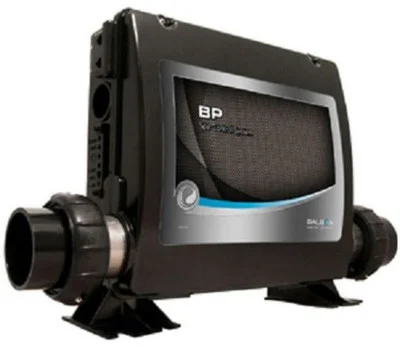

BP501G 54680 same as 56480 spa control system with 5.5kw Heater BP501G2 .
This spa pack does require a circ pump and controls one 2-speed pump, one single speed pump or a blower, a light and an ozonator.
Includes the 5.5W heater. Domestic spa pack for use in North America.
M7 sensors included inside the heater for reliable performance and safety.
Balboa quality made from higher flame retardant and impact resistant materials.
Overheat fault detection
110V/220V 60Hz operationPump 1 – , 2 speed, 110V/220V, 12A MaxPump 2 or Blower – , 1 speed, 110V/220V, 12A MaxCirc Pump – , 110V/220V, 2A Max (pump 1 is 1-speed when using a 24 hour circulation pump 1-speed and voltage must be the same between circ pump, pump 1 and ozonator when used in this configuration.Ozonator, 110V/220V,Audio/Video -, 110V/220V12V 12 watt Light and 8ft cord5.5KW, 240V Flo-Thru Incoloy M7 Heater – plug and click
Quick connect heater style – For serviceability, the new BP501/BP601 systems include a new single board configuration and haveBalboa’s new quick connect heater system – no more removing heater straps, just unplug the old heaterand plug in a new one.
This is a wifi capable spa control box with circuit board and heater. Need the wifi module, see 50350 (sold separately)
Need a control panel for this spa pack? See TP600 (sold separately) – also works with other TP and SpaTouch control panels.
