Description

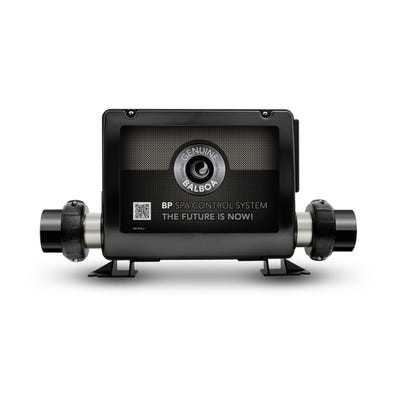

The New Balboa BP7 is a universal spa pack that can be used to replace many different packs from other brands. This 4 kW plug n’ click heater can be used in either a 110v or 220v system and can run up to 4 pumps.
- Supply voltage of 230v – 3 wire and 230v – 4 wire
- Supports Chromozon3, Balboa Bluetooth Audio, Status Pro, and ControlMySpa
- BP7 can run in 32 various configurations with the use of 7 relays, and it can power a spa with 1-4 pumps.
- Systems used by BP automatically distinguish between 50Hz and 60Hz.
- Ozone and the Circ pump can both be converted to 115V, but will both operate at the same voltage after.
- Measures 17″ long, 4.75″ wide, and 11.5″ tall
- Wi-Fi capable (Wi-Fi module not included)
Control System Details:
- Main Circuit: 2- Speed Pump 120/240V
- 2nd Circuit: 1- Speed Pump 120/240V
- 3rd Circuit: 1- Speed Pump 120/240V
- 4th Circuit: 1- Speed Pump 120/240V
Fitment guidelines:
Works with TP400, TP600, TP800, TP900, and Spa Touch Balboa control panels
Additional Information:
Supports all TP and SpaTouch topsides and all BP ancillary products (ControlMySpa, BBA, CZ and Status Pro)
