Description

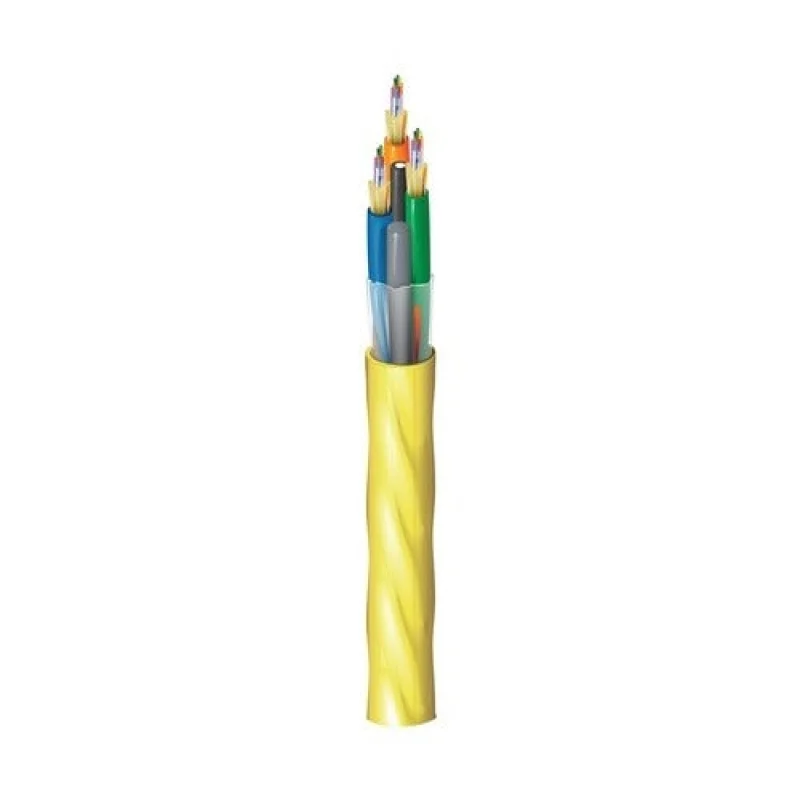

The BELDEN INC. FI4D036PK is an indoor fiber optic cable built to OM4 multimode specifications with a 36-fiber count and an OFNP (Optical Fiber Nonconductive Plenum) rating. OM4 multimode fiber supports high-bandwidth applications and is engineered for runs in data centers, commercial buildings, and structured cabling backbones. The OFNP rating meets plenum-space requirements, making it suitable for installation in air-handling spaces without an additional conduit in many jurisdictions. This cable is sold as a single unit and is intended for installation by licensed low-voltage or communications cabling technicians.
This cable is used in commercial and enterprise environments where high-density multimode fiber runs are required through plenum-rated spaces. Typical applications include backbone cabling between telecommunications rooms, horizontal runs in open-ceiling office environments, and data center interconnects. The 36-fiber count supports high-density patching and trunk configurations commonly used in structured cabling installations following ANSI/TIA-568 standards.
Key Features
- OM4 multimode fiber supports high-bandwidth, short- to medium-distance transmission
- OFNP plenum rating meets fire and smoke requirements for air-handling spaces
- 36-fiber count enables high-density installations with fewer cable runs
- Indoor-rated construction designed for structured cabling backbone and horizontal applications
- Sold as a single unit (EA) for straightforward procurement and inventory tracking
Compatibility
Designed as an OEM-style plenum fiber optic cable for use in OM4 multimode structured cabling systems. Terminates with standard LC, SC, or MPO connectors compatible with OM4 multimode hardware. Specific system compatibility should be verified against the end-user infrastructure before installation.
Installation Notes
Installation should be performed by a licensed low-voltage or communications cabling technician familiar with ANSI/TIA-568 and local fire codes. Power down active equipment connected to the fiber path before terminating or splicing. When routing through plenum spaces, verify that the OFNP rating satisfies local Authority Having Jurisdiction (AHJ) requirements. Observe minimum bend radius guidelines for the cable diameter to avoid signal degradation or physical damage to the fiber strands.
Technical Specifications
- Fiber Type: OM4 Multimode
- Fiber Count: 36
- Fire Rating: OFNP (Optical Fiber Nonconductive Plenum)
- Installation Environment: Indoor
- Unit of Measure: EA (Each)
- Quantity Per Unit: 1
Standard Information
- Brand: BELDEN INC.
- Manufacturer Part Number: FI4D036PK
