Description

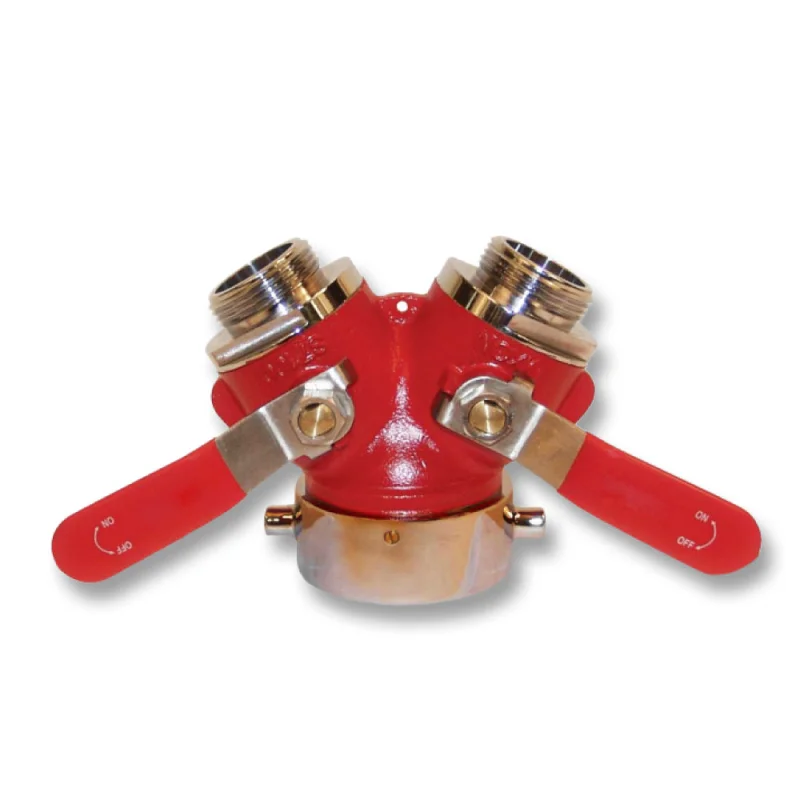

The Brass 1-1/2″ x 1-1/2″ x 1-1/2″ gated wye valves are used for splitting water flow between fire hoses, fire hydrants, fire trucks, pumps, standpipe systems or any other application wherediverting water in two different directions is needed. Thecast brass fire hose wye valve is made fromhigh quality materials and is highly anti-corrosive.
Choose the right threads. This wye valve can fit directly onto standard 1-1/2″ NH firehoses and outlets (most common fitting for fire hoses in the USA) or onto 1-1/2″ NPSH / NPT / IPT fittings which are straight or tapered pipe threads. Select the correct fittings on the pulldown selector on top of the add-to-cart button.
- Inlet– Choose 1-1/2″ NH / NST Female Swivel(Fire Hose Threads) or NPSH (IPT) Straight Pipe Threads
- Outlet – 1-1/2″ NH / NST Male Rigid (Fire Hose Threads) or NPSH (IPT) Straight Pipe Threads
- Material -Cast Brass Painted Red For High Visivilty
- Operation – PinLug Swivel Female / Hand Operated Shut Off Ball Valves
- Seals – Field Adjustable & Field Replaceable
- Maximum Operating Pressure – 175 PSI
- Weight– 4.45 LBS
