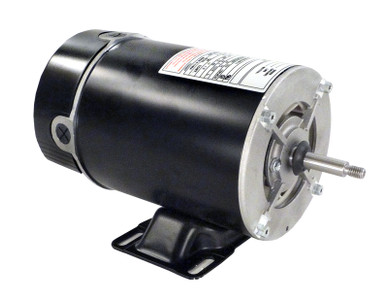

Century .75HP 115V 9.4A 48Y Single Speed Above Ground Pool Motor, BN24V1

Description

Century(R) Flex 48 BN24V1 Thru-Bolt Pool and Spa Pump Motor; 0.75 HP, 3450 RPM, 115 V, 48Y, Threaded Shaft

Product Features

• 12 & 3 O’clock Conduit Entries
• 3-1/2″ Shaft Height
• 50°C Ambient
• Stainless Steel Shaft
• Four Thru Bolts on a 5.146 Bolt Circle
• 48/56 Base Mounting
• Sealed Ball Bearings
• UL 1081 Design
• Rigid Base
• Threaded Shaft

Used On

• Aqua-Flo Flo-Master FMCP Pump Parts
• Aqua-Flo Flo-Master FMHP Pump Parts
• Hayward Power-Flo II Pump Parts
• Jacuzzi B Series Pump Parts
• Jacuzzi K and KM Pump Parts
• Jacuzzi L Series Pump Parts (
• Jacuzzi LH/LTH Series Pump Parts
• Jacuzzi LR Series Pump Parts
• Pentair Dynamo Pump Parts
• Pentair Optiflo Pump Parts
• Sta-Rite ABG Series Pump Parts
• Sta-Rite ABG Series Pump with Canopy Parts
• Sta-Rite Delta Pump Parts
• Sta-Rite JW Pump Parts
• Sta-Rite JW Series with Canopy Pump Parts
• Sta-Rite JWP Series Pump Parts
• Sta-Rite LT Series Pump Parts
• Waterway Center Discharge Pump Parts
• Waterway CSA Supreme Hi-Flo Pump Parts
• Waterway Hi-Flo Side Discharge Pump Parts
• Waterway Supreme Hi-Flo Pump Parts
• PowerFlo SP1500 Pump Series Parts

Specifications

Output HP:	.75 Hp	Output KW:	0.56 kW
Frequency:	60 Hz	Voltage:	115 V
Current:	9.4 A	Speed:	3450 rpm
Service Factor:	1	Phase:	1
Duty:	Continuous	Insulation Class:	B
Frame:	48Y	Enclosure:	Open Drip Proof
Thermal Protection:	Thermally Protected	Ambient Temperature:	50 °C
UL:	Recognized	CSA:	Y
Number of Speeds:	1

Technical Specifications

Electrical Type:	Split Phase, Induction Run, Single Or Dual Voltage	Poles:	2
Rotation:	Counterclockwise Pump End	Mounting:	Thru Bolt
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	3/8 THREADS	Overall Length:	11.21 in
Frame Length:	6.50 in	Shaft Diameter:	0.500 in
Shaft Extension:	2.372 in
