Description

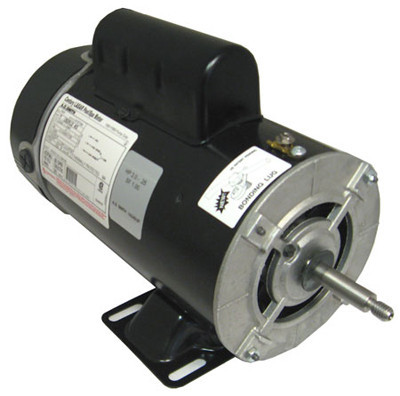

CENTURY/MAGNETEK/A.O. SMITH | 2 SPEED | BN61
MAGNETEK-THRU BOLT-48 FRAME-2 SPEED
CATALOG BN61
PART 7-182912-03
….. HORSEPOWER
LABEL HORSEPOWER: 2.0-.25 FULL RATED
SERVICE FACTOR: 1.0
EFFECTIVE HORSEPOWER:
HIGH SPEED: 2.0
LOW SPEED: .25
….. DIMENSIONS
LENGTH: 11″ EXCLUDING SHAFT
SHAFT LENGTH: 2 1/4″
DIAMETER: 5 5/8″
….. CAPACITORS
RUN CAPACITOR: 30 UF 370 VAC (OPT 5270-05)
START CAPACITOR: 53-64 MFD 250 VAC (OPT 5270-24)
….. ELECTRICAL
VOLTAGE: 230 VOLTS SINGLE PHASE
AMP DRAW: 8.5-2.8
….. SHIPPING WEIGHT 30.50 LBS
….. INCLUDES
STAND WELDED ON MOTOR & HAS A PLASTIC BACK COVER.
(4) THRU BOLTS 9 5/8″ LONG.
