Description

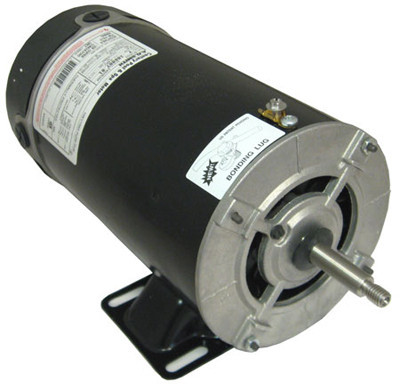

CENTURY/MAGNETEK/A.O. SMITH | SINGLE SPEED | BN40SS
MAGNETEK-THRU BOLT-48 FRAME UPRATED
CATALOG BN40
PART 7-182688-02
….. HORSEPOWER
LABEL HORSEPOWER: 2.0 & 3.0
SERVICE FACTOR: 1.0
EFFECTIVE HORSEPOWER: 2.0 & 3.0
….. DIMENSIONS
LENGTH: 11″ EXCLUDING SHAFT
SHAFT LENGTH: 2 1/4″
DIAMETER: 5 5/8″
….. CAPACITOR
START CAPACITOR, 88-106 UF 125 VAC
MOUNTING ON BACKOF MOTOR (OPT 5270-27)
….. ELECTRICAL
VOLTAGE: 230 VOLTS SINGLE PHASE
AMP DRAW: 10 AT 230 VOLTS
….. SHIPPING WEIGHT: 29.10 LBS
….. INCLUDES
STAND WELDED ON MOTOR & HAS A PLASTIC BACK COVER.
(4) THRU BOLTS 9 5/8″ LONG.
