Description

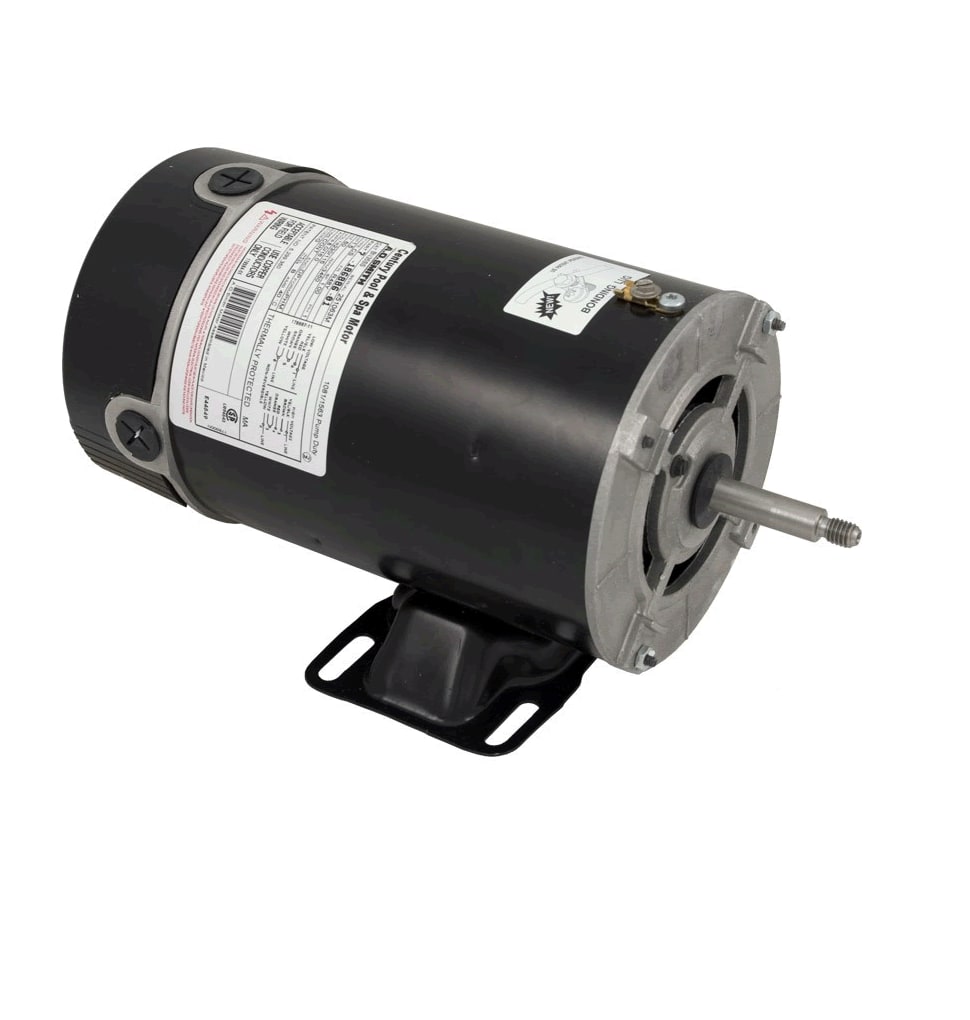

A.O. Smith Corp/ Regal Beloit Replacement 1-1/2 Horsepower 48Y Frame Thru Bolt Style Motor with Stainless Steel Shaft. 115/230v. Many above ground pool & spa pumps use this motor. Used with: Hayward Power-Flo LX1580, Power-Flo II, Pentair Dynamo, Waterway Hi-Flo & HI-Flo II Side Discharge.
Key Features:
-
12 & 3 O’clock Conduit Entries
-
3-1/2″ Shaft Height
-
40°C Ambient
-
Stainless Steel Shaft
-
Four Thru Bolts on a 5.146 Bolt Circle
-
48/56 Base Mounting
-
Sealed Ball Bearings
-
UL 1081 Design
-
Rigid Base
-
Threaded Shaft
-
Note: NOT California Title 20 Compliant.
