Description
Product Overview

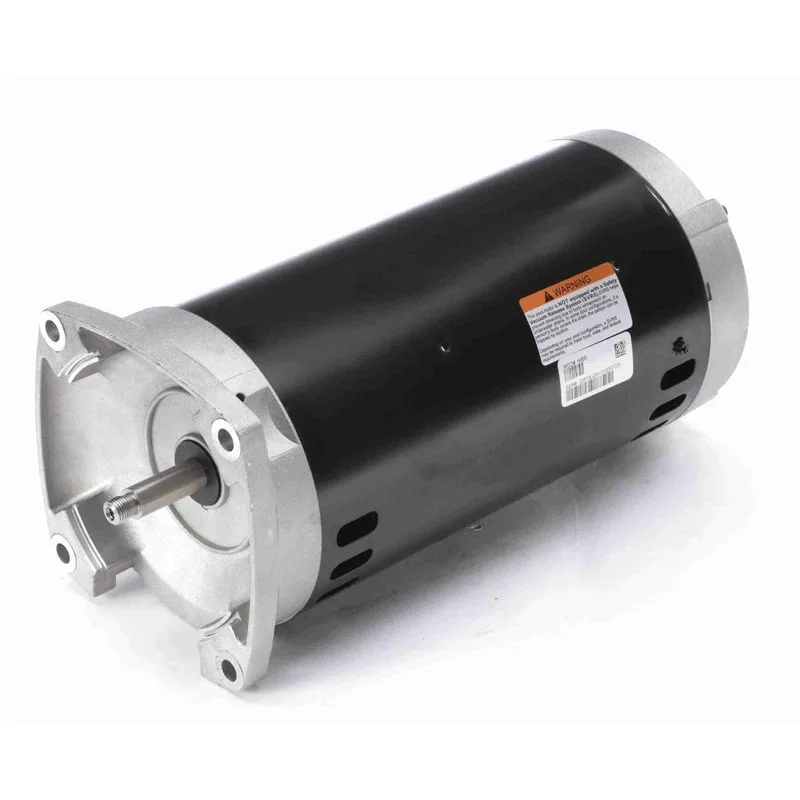

Restore dependable circulation in a compatible commercial pool or spa pump with the Century H995 replacement motor. This heavy-duty motor delivers 5 horsepower and features a square-flange 56Y frame designed for select Pentair, Pac-Fab, and other compatible pump wet ends.
The H995 operates on 208230V or 460V three-phase electrical service and must be wired for the available supply voltage during installation. Its single-speed design provides approximately 3450 RPM under normal operating load, supporting the water flow and pressure required by compatible filtration and circulation systems.
A threaded stainless-steel shaft connects the motor directly to the pump impeller. Sealed ball bearings support smooth, continuous-duty operation, while the open drip-proof enclosure allows ventilation around the motor windings. This motor does not include built-in thermal-overload protection, so properly sized external motor protection is required.
This listing includes the replacement motor only. The pump housing, impeller, diffuser, shaft seal, electrical controls, and installation materials are sold separately.
Key Features
- Genuine Century commercial pool pump motor
- 5 HP single-speed output
- Three-phase electrical configuration
- 208230/460V operation
- 60 Hz frequency
- Approximately 3450 RPM operating speed
- 1.0 service factor and 5.0 total horsepower
- Y56Y square-flange frame
- Threaded stainless-steel shaft
- Reversible rotation
- Open drip-proof enclosure
- Sealed ball-bearing construction
- Continuous-duty rating
- Designed for compatible Pentair and Pac-Fab pumps
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Century |
| Manufacturer Part Number | H995 |
| SKU | H995 |
| UPC / Barcode | 786674025180 |
| Product Type | Pool and Spa Pump Motor |
| Motor Horsepower | 5 HP |
| Total Horsepower | 5.0 THP |
| Service Factor | 1.0 |
| Voltage | 208230/460V |
| Full-Load Amperage | Approximately 13.4A / 6.7A |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Speed | Single Speed |
| Operating RPM | Approximately 3450 RPM |
| Frame | Y56Y / 56Y |
| Mounting | Square Flange, No Base |
| Shaft Type | Threaded Stainless Steel |
| Shaft Diameter | 5/8 Inch |
| Shaft Thread | 1/2-20 UNF-2A RH |
| Rotation | Reversible |
| Enclosure | Open Drip-Proof |
| Insulation Class | Class B |
| Duty Rating | Continuous |
| Maximum Ambient Temperature | 40C / 104F |
| Thermal Protection | None |
| Approximate Weight | 44 lb |
Compatibility
The H995 is commonly used as a replacement motor for select Pentair and Pac-Fab commercial pump configurations, including applications associated with motor reference 35-5704.
Horsepower alone does not confirm compatibility. Compare the existing motors frame, flange, voltage, phase, service factor, amperage, shaft dimensions, rotation, and total horsepower before ordering. The impeller and diffuser must also be matched to a 5 HP motor load.
Installation Information
Installation must be completed by a qualified electrician or commercial pool technician. Disconnect and lock out electrical power before servicing the pump.
Configure the motor leads for the correct supply voltage and use an approved three-phase motor starter with properly sized overload protection. Confirm phase rotation after wiring. If the pump rotates backward, correct the phase sequence before operation.
Replace the mechanical shaft seal whenever the motor is removed from the wet end. Inspect the impeller, diffuser, seal plate, O-rings, and pump housing before reassembly. Prime the pump completely before startup and never operate it dry.
Package Contents
- One Century H995 replacement motor
Pump housing, impeller, diffuser, shaft seal, motor starter, overload protection, wiring, controls, and installation labor are not included.
Warranty Information
Warranty coverage is subject to Centurys current replacement-motor terms, proof of purchase, correct application, and professional installation. Incorrect voltage, phase loss, inadequate overload protection, water intrusion, dry operation, or improper motor sizing may not be covered.
