Description

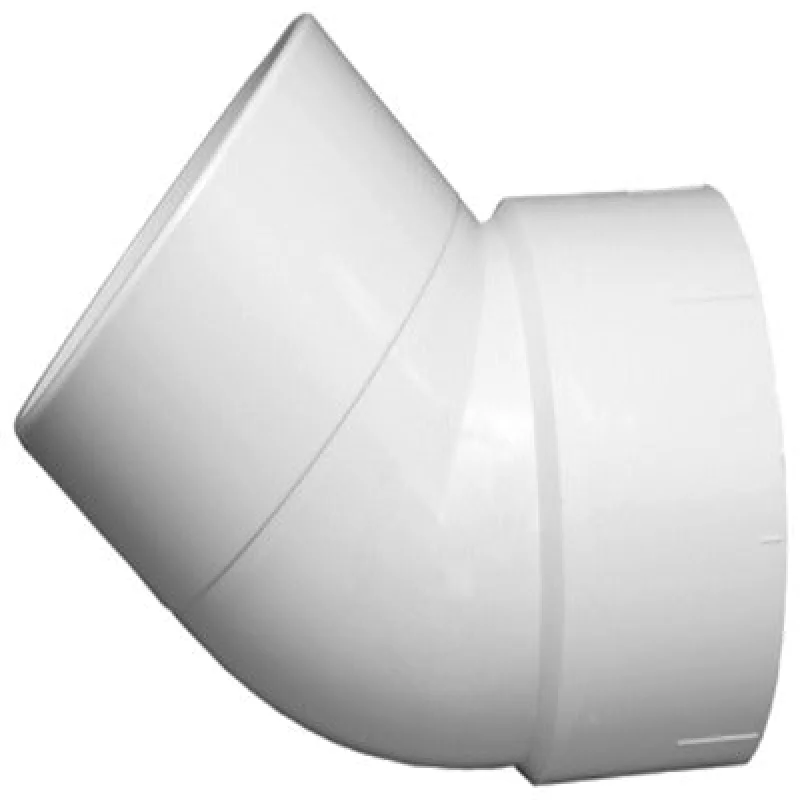

The Charlotte Pipe PVC 00323 0800HA is a 1-1/2 inch Schedule 40 PVC street elbow designed for drain, waste, and vent (DWV) systems. Built to a 45-degree angle, it allows for directional changes in gravity-flow drain lines without requiring a separate socket fitting. The street configuration features one spigot end and one socket end, enabling direct insertion into a hub fitting and reducing the number of couplings needed on a run. Licensed plumbers install this fitting in residential and light commercial DWV piping during rough-in or repair work.
This fitting is used in Schedule 40 PVC DWV applications including drain lines, waste stacks, and vent piping in residential and commercial construction. The 45-degree angle suits angled branch connections and offset runs where a 90-degree turn is too aggressive. It is sold in a package quantity of 100 units, making it suitable for contractors stocking jobsite supply or wholesale distribution.
Key Features
- 45-degree street elbow configuration with one spigot and one socket end
- Schedule 40 PVC construction for DWV service
- 1-1/2 inch nominal pipe size
- Reduces fitting count by connecting directly into a hub without an additional coupling
- Package quantity of 100 units per case
Compatibility
Designed as an OEM-style replacement and standard fitting for 1-1/2 inch Schedule 40 PVC DWV piping systems in residential and commercial drain, waste, and vent applications.
Installation Notes
Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and verify the line is depressurized and drained before cutting into an existing system. Use approved PVC primer and solvent cement rated for Schedule 40 DWV fittings; do not substitute CPVC or pressure-rated cements. Allow solvent weld joints to cure fully before restoring flow.
Technical Specifications
- Pipe Size: 1-1/2 inches
- Schedule: Schedule 40
- Fitting Type: 45 Degree Street Elbow
- Application: DWV (Drain, Waste, Vent)
- Material: PVC
- Package Quantity: 100 EA
- Weight: 19.5 pounds
Standard Information
- Brand: Charlotte Pipe Foundry Co.
- Manufacturer Part Number: PVC 00323 0800HA
