Description

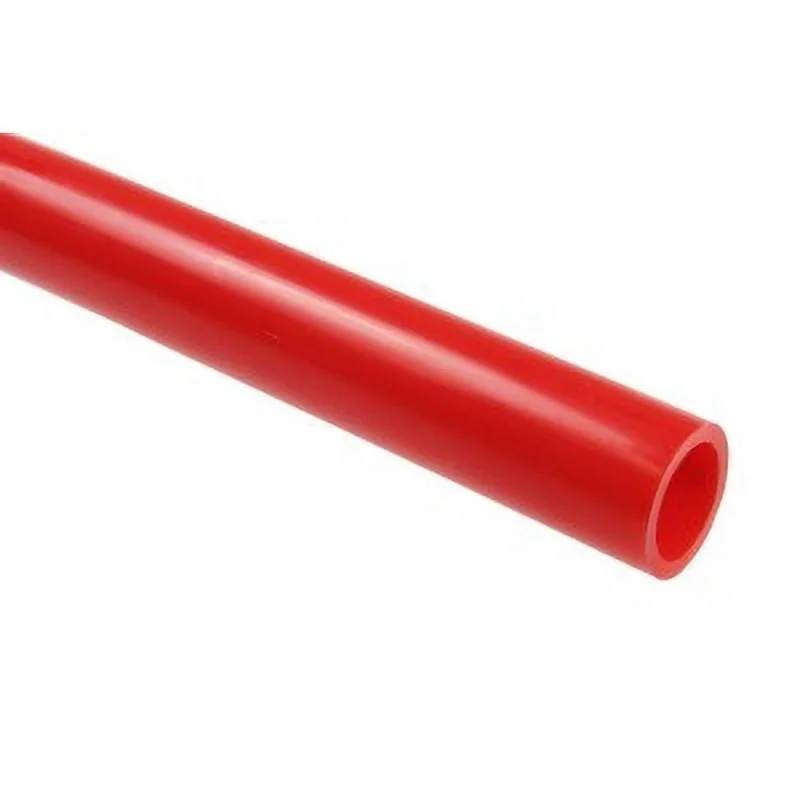

The COILHOSE PNEUMATICS NC0325-2000R is a flexible red nylon pneumatic tubing supplied as a 2,000-foot coil, sold in 1-foot increments with a 25-foot minimum cut length. It features a 3/16-inch outside diameter and a 9/64-inch (0.138 inch) inside diameter with a 0.025-inch wall thickness. Rated for a maximum working pressure of 225 psi, the tubing handles temperatures from -60 degrees F to 200 degrees F. Licensed HVAC technicians, plumbers, pneumatic system installers, and industrial maintenance professionals use this tubing in compressed-air lines, fluid-transfer circuits, and instrumentation runs where a lightweight, flexible nylon solution is required.
This tubing is suited for both light industrial and commercial pneumatic applications. It performs well in tool-feed lines, air-logic circuits, and low-pressure fluid conveyance systems. The flexible nylon construction allows routing through tight spaces and around obstructions without kinking. Compatible with Coilock fittings and Poly-Tube fittings, it integrates directly into existing push-to-connect and compression fitting assemblies commonly found on pneumatic control panels, machine tools, and process equipment.
Key Features
- 3/16-inch OD and 9/64-inch ID with a 0.025-inch wall for consistent flow and secure fitting engagement
- 225 psi maximum working pressure suitable for standard compressed-air supply lines
- Operating temperature range of -60 degrees F to 200 degrees F for cold-environment and elevated-heat installations
- Flexible nylon construction with a hardness rating of 78 HR resists kinking during routing
- UL94HB flame classification for use in environments with fire-rating requirements
- Sold in 1-foot increments from a 2,000-foot coil, with a 25-foot minimum cut length to reduce waste on large jobs
Compatibility
Compatible with Coilock fittings and Poly-Tube fittings per manufacturer specification. Suitable for use in pneumatic plumbing systems that accept 3/16-inch OD nylon tubing with push-to-connect or compression-style fittings.
Installation Notes
Installation is typically performed by pneumatic system technicians, millwrights, or licensed mechanical contractors. Depressurize and lock out the compressed-air supply before cutting or connecting tubing. Use a clean, square tube cut to ensure a full, leak-free seat in push-to-connect or compression fittings. Verify fitting compatibility and system pressure ratings before placing the line into service.
Technical Specifications
- Maximum Working Pressure: 225 psi
- Temperature Range: -60 degrees F to 200 degrees F
- Outside Diameter: 3/16 inches (0.1875 inches)
- Inside Diameter: 9/64 inches (0.138 inches)
- Wall Thickness: 0.025 inches
- Coil Length: 2,000 feet
- Minimum Cut Length: 25 feet
- Material: Nylon
- Color: Red
- Hardness: 78 HR
- Flexibility: Flexible
- Standard: UL94HB
- Weight: 0.35 pounds
Standard Information
- Brand: COILHOSE PNEUMATICS
- Manufacturer Part Number: NC0325-2000R
