Description

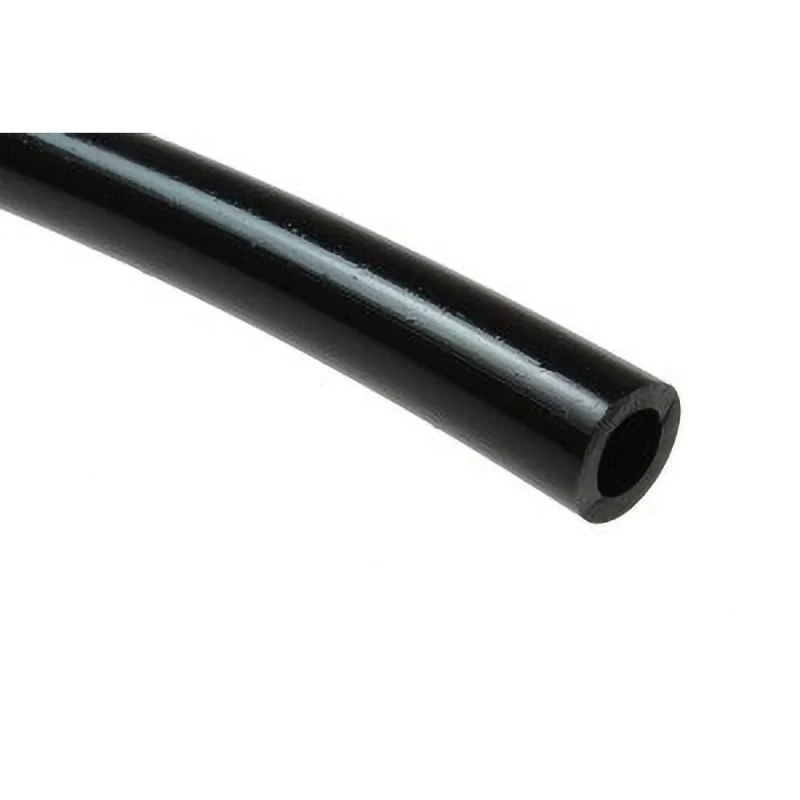

The COILHOSE PNEUMATICS PT0606-100KD is a flexible polyurethane pneumatic tubing rated for demanding compressed air and fluid transfer applications. It features a 0.25-inch inner diameter and a 0.375-inch outer diameter, with a 100-foot coiled length suited for routing through panels, equipment enclosures, or shop air systems. The tubing handles a maximum working pressure of 147 psi and operates across a wide temperature range of -60 to 200 degrees F. With a Shore A hardness rating of 95A, it resists kinking and abrasion under repeated flex cycles. Licensed HVAC technicians, pneumatic system technicians, and industrial maintenance trades commonly install this tubing as part of control or instrument air lines.
This tubing is intended for use in compressed air distribution, pneumatic control systems, and general fluid transfer where a lightweight, flexible line is required. The coiled 100-foot length reduces bulk during installation and allows for clean routing in tight spaces. It is appropriate for both light industrial and commercial environments where operating temperatures and pressures fall within the rated limits. The black color provides UV resistance for installations near ambient light exposure.
Key Features
- Flexible polyurethane construction with 95A Shore hardness for kink and abrasion resistance
- 147 psi maximum working pressure for standard compressed air service
- Wide operating range from -60 to 200 degrees F
- 100-foot coiled length for clean, manageable installation runs
- UL94HB compliant flame rating
- Compatible with Coilock push-to-connect fittings and Poly-Tube fittings
Compatibility
Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings as stated by the manufacturer.
Installation Notes
Installation should be performed by a qualified pneumatic or mechanical technician. De-pressurize the system fully before cutting or connecting tubing. Use clean cuts with a tubing cutter to ensure proper seating in push-to-connect fittings. Avoid routing near sharp edges or heat sources that exceed the 200 degrees F rated limit.
Technical Specifications
- Inside Diameter: 0.25 inches
- Outside Diameter: 0.375 inches
- Length: 100 feet
- Maximum Working Pressure: 147 psi
- Minimum Operating Temperature: -60 degrees F
- Maximum Operating Temperature: 200 degrees F
- Material: Polyurethane
- Hardness: 95A Shore A
- Color: Black
- Coiled: Yes
- Standards: UL94HB Compliant
- Weight: 3.4 pounds
Standard Information
- Brand: COILHOSE PNEUMATICS
- Manufacturer Part Number: PT0606-100KD
