Description

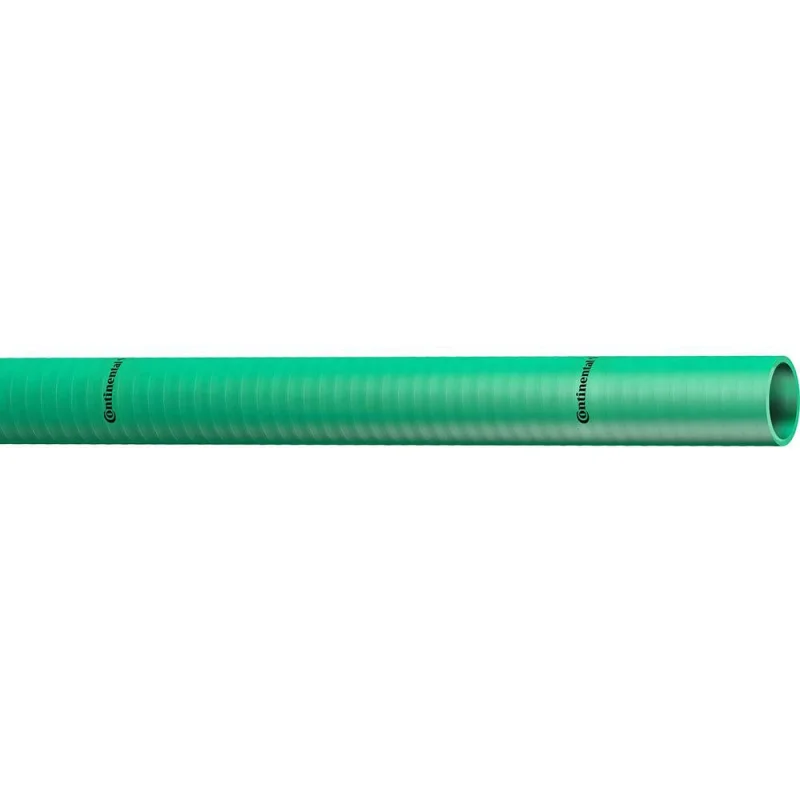

The CONTINENTAL CONTITECH 20013203 is a polyvinylchloride (PVC) water suction and discharge hose rated for a maximum working pressure of 130 psi and a temperature range of 15 to 150 degrees F. The hose is green in color and is priced and cut in 1-foot increments with a 25-foot minimum cut length. This type of hose is a standard tool for plumbers, irrigation contractors, construction crews, and pump technicians who need a flexible, lightweight suction line for water transfer applications. The PVC construction keeps weight manageable while providing resistance to abrasion and general wear in both above-ground and temporary below-grade installations.
This hose is suited for residential and light commercial water suction and discharge service, including sump pump discharge, dewatering, irrigation supply, and general-purpose water transfer. It performs across a wide temperature window, handling cold-weather conditions down to 15 degrees F and warm-water service up to 150 degrees F, making it appropriate for seasonal as well as year-round installations. The 25-foot minimum cut length applies to all orders, and quantity must be ordered in multiples of 25 feet.
Key Features
- PVC construction provides flexibility and resistance to abrasion in water transfer service
- 130 psi maximum working pressure suits typical pump discharge and suction applications
- Wide temperature rating of 15 to 150 degrees F supports cold and warm water service
- Green color provides visual identification in multi-hose installations
- Sold by the foot in 1-foot increments with a 25-foot minimum cut length
Compatibility
Designed for general-purpose water suction and discharge service; suitable for use with standard centrifugal pumps, submersible pump discharge, dewatering equipment, and irrigation systems where a flexible PVC suction or discharge line is required.
Installation Notes
Installation is typically performed by plumbers, irrigation technicians, or pump service professionals. Confirm that all fittings and clamps are rated at or above the hose working pressure of 130 psi before pressurizing the line. Depressurize and drain the system before cutting, coupling, or repositioning the hose. Do not exceed the rated temperature or pressure limits, and protect the hose from prolonged UV exposure and mechanical abrasion in permanent installations.
Technical Specifications
- Material: Polyvinylchloride (PVC)
- Maximum Working Pressure: 130 psi
- Minimum Temperature: 15 degrees F
- Maximum Temperature: 150 degrees F
- Color: Green
- Sold In: 1-foot increments
- Minimum Cut Length: 25 feet
- Weight: 1.8 pounds (per unit as packaged)
Standard Information
- Brand: CONTINENTAL CONTITECH
- Manufacturer Part Number: 20013203
