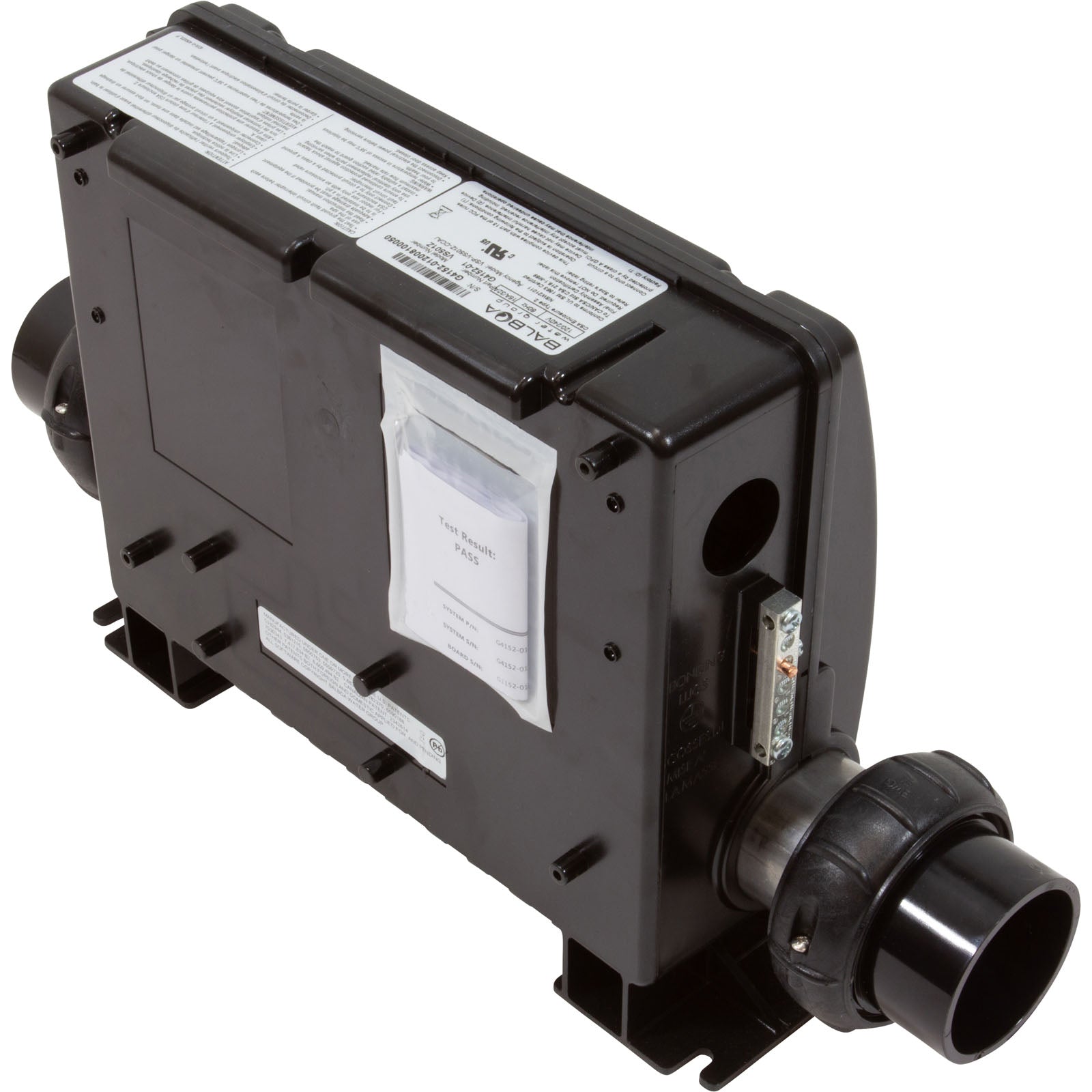

Control, BWG VS501Z, P1, P2 or Bl, Oz, Lt, 5.5kW, 115v/230v

Description

G5152 Control, Balboa Water Group VS501Z, P1, P2 or Bl, Oz, Lt, 5.5kW, 115v/230v
This is a control box only with 5.5kw heater

Balboa Water Group VS501Z Control System with 5.5kW Heater

Features:

• Controls a two-speed pump and a one-speed pump or blower
• 115/230v Ozone circuit
• 115/230v Circ Pump circuit (30GPM minimum)
• 12v spa light circuit
• Patented M7™ technology
• Plumb on pressure or vacuum side
• US & Canadian safety approvals

The Value Series (VS) family of Hot Tub Control Systems were designed using Balboa’s patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service.

The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.375/5.5kW heater and can support mini, duplex, or standard digital control panels.
