Description

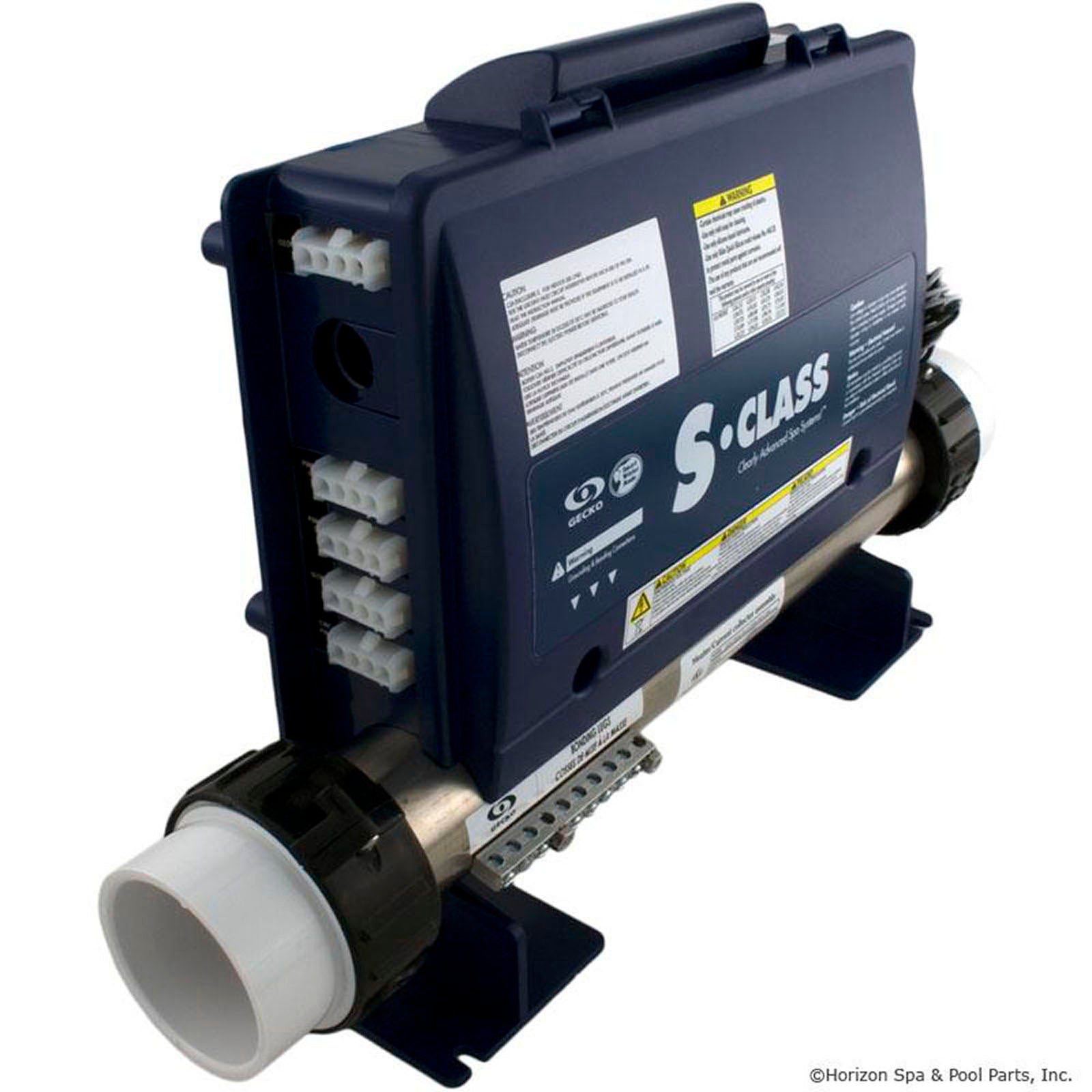

Dimensions of control system: Heater: 2″ x 15″ Box Height 11-1/2″ Box length14-1/4″ Box Width3-3/8″ The S-class series of spa controls presents versatility and compact size all in one package.
Product Features:
- Automatic time-out on all outputs.
- Sensor failure detection.
- Ozone management.
- Programmable filter cycles.
- High-limit protection.
- Pressure switch failure detection.
- Current limiting option.
- Smart Winter Mode.
- Temp. accuracy within ± 1°F.
- Filter cycle overtemp protection.
This S-Class control box only contains circuits fitted with Amp style receptacles that will operate the following equipment:
- Pump, 1-spd or 2-spd, 115/230v.
- Pump, 1-spd, 115/230v.
- Blower 115/230v.
- Ozone, 115/230v.
- Light 12v.
Control Box Dimensions:
- Height: 11-1/2″
- Width: 14-1/4″
- Depth: 3-3/8″
Product Specifications:
