Description
This is a retrofit kit to replace discontinued control panel along with circuit board.

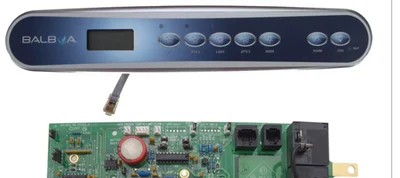

Dimension One Retrofit Board and Topside D1RETRO83
Replaces 51483 01560-150
Retrofit Kit Features:•Easy Installation With Detailed Instructions•No Specialty Tools Required•Fit Existing Control Box For Quick Easy Swap•Topside Control has Same Size & Shape as Original Topside control for easy replacement
Kit includes:•Topside Control Panel•Circuit Board•Instruction Sheet
Dimension One retro fit kit is designed to allow for replacement of the discontinued 51483 with new topside control and circuit board. Verify this is the correct kit by locating your model below.The correct kit is determined by the year and model of the spa.
| Model | Year | Replacement Kit Number |
| Arena D1SL | 1998 All 1999 Up To Serial62550 | See D1Retro89 |
| Arena SL | 1997 All | See D1Retro89 |
| Aurora II | 1998 All 1999 Up To Serial63891 | This Kit Retro83 |
| Aurora D1SL | 1998 All 1999 Up To Serial62584 | D1Retro89 |
| Aurora HP | 1997 All | D1Retro86 |
| California | 1997 All | D1Retro86 |
| California | 1998 All 1999 Up To Serial63863 | This Kit Retro83 |
| Chairman |
1997 All |
This Kit Retro83 |
| Chairman |
1998 All 1999 Up To Serial63869 |
This Kit Retro83 |
| Chairman II | 1999 Up To Serial64315 | This Kit Retro83 |
| Cimmeron SL | 1996 All 1997 All | D1Retro89 |
| Diamante SL | 1997 All | D1Retro89 |
| Diplomat | 1997 All 1998 All 1999 Up To Serial63872 | This Kit Retro83 |
| Interlude SL | 1997 All 1998 All 1999 Up To Serial62553 | D1Retro89 |
| Luxxor | 1997 All | This Kit Retro83 |
| Nautilus | 1997 All | D1Retro86 |
| Nautilus | 1998 All 1999 Up To Serial64003 | This Kit Retro83 |
| Quadra | 1997 All 1998 All 1999 Up To Serial62795 | D1Retro89 |
| Santiago | 1996 All 1997 All | D1Retro86 |
| Sedona | 1997 All | This Kit Retro83 |
| Sierra SL | 1996 All 1997 All | D1Retro89 |
| Taos | 1997 All | D1Retro86 |
| Tiberon | 1997 All | D1Retro86 |
| Triad | 1998 All 1999 Up To Serial62614 | D1Retro89 |
| Triton | 1997 All | D1Retro89 |
