Description

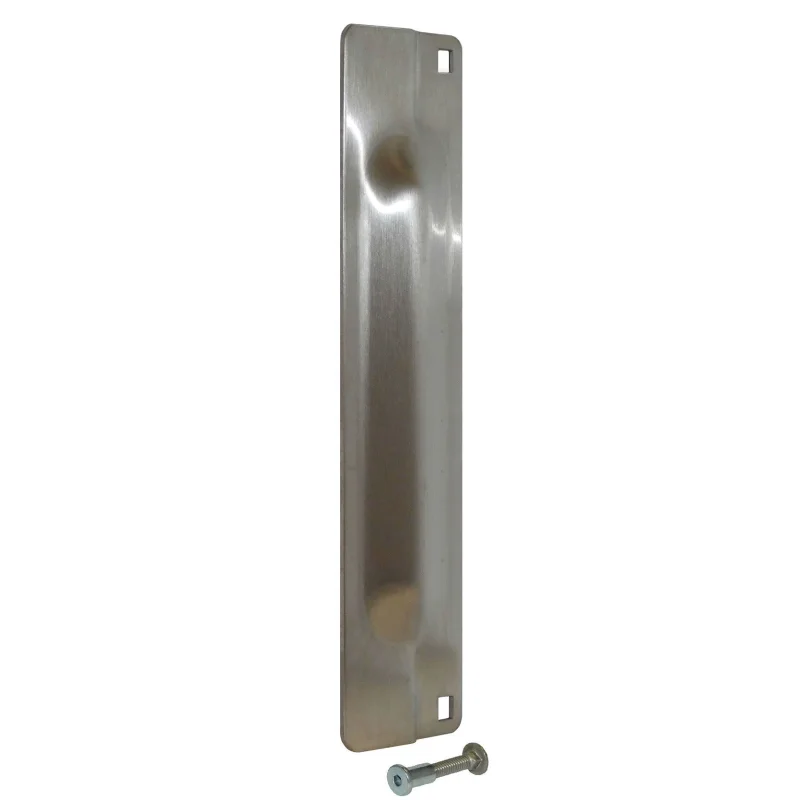

The DON-JO PMLP111EBF630 is a pin latch protector designed to secure the latch bolt area on outswing doors. It installs over the door frame edge to prevent unauthorized manipulation of the latch mechanism, reinforcing the door against forced entry attempts. Measuring 3 inches wide by 11 inches long, this protector ships with EBF (Edge Bolt Fasteners) hardware included. The satin stainless steel finish (finish code 630) delivers corrosion resistance appropriate for both interior and exterior door applications. The unit weighs 1.13 pounds and is sold individually.
This latch protector is suited for commercial and institutional door openings where outswing door assemblies are present. Typical installations include office entries, utility rooms, stairwell doors, and exterior egress doors. It is commonly specified by locksmiths, door hardware installers, and general contractors during new construction or retrofit security upgrades. The EBF fastener set eliminates the need to source separate mounting hardware.
Key Features
- Covers and protects the latch bolt on outswing door assemblies
- Includes EBF fasteners for complete installation without additional hardware
- Satin stainless steel finish (630) resists corrosion on interior and exterior doors
- Low-profile 1 inch height sits flush against the door frame edge
- Sold individually with a case quantity of 10 available for multi-door projects
Compatibility
Designed as an OEM-style replacement and new-installation latch protector for outswing door assemblies requiring a 3 inch x 11 inch cover plate with EBF fastener mounting.
Installation Notes
Installation is typically performed by a licensed locksmith or qualified door hardware installer. Ensure the door is closed and secured before marking fastener locations on the frame edge. Use the included EBF fasteners and follow standard door frame drilling practices to avoid splitting the frame material. Verify local building and fire codes for any requirements governing hardware on rated door assemblies before installation.
Technical Specifications
- Width: 3 inches
- Length: 11 inches
- Height (Profile): 1 inch
- Weight: 1.13 pounds
- Finish: Satin Stainless Steel (630)
- Fastener Type: EBF (Edge Bolt Fasteners) included
- Door Swing: Outswing
- Sales Unit: Each
Standard Information
- Brand: DON-JO
- Manufacturer Part Number: PMLP111EBF630
