Description
FlowVis is available in two configurations:
- A retrofit kit that installs to a pre-existing Jandy or Praher 2″ x 2.5″ Check Valve assembly.

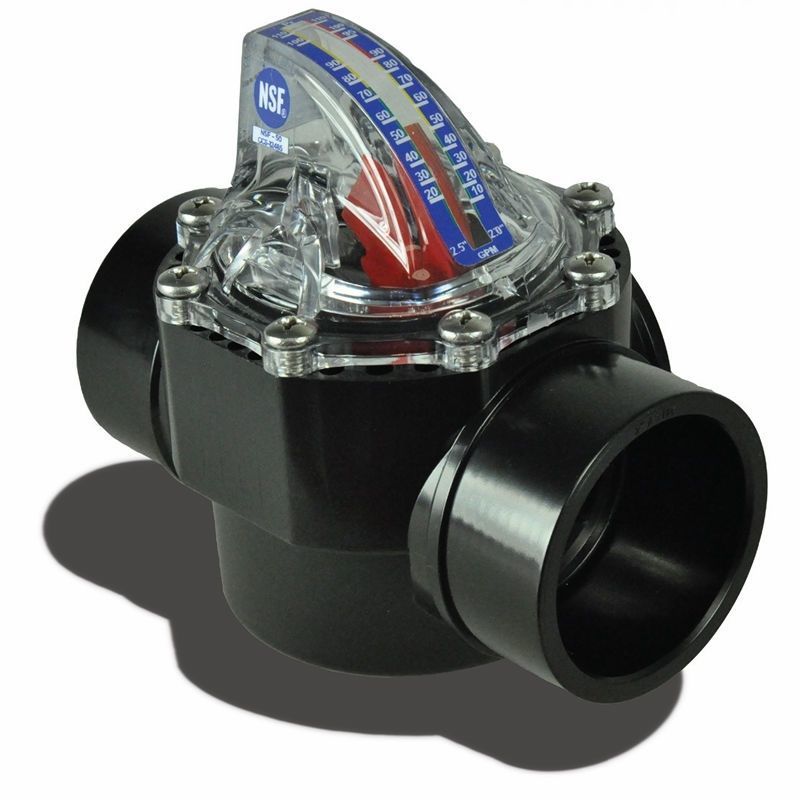

- A complete pre-assembled Check Valve assembly with FlowVis Unlike other Flow Meters, the position in which FlowVis is installed (horizontal, vertical, or relative to elbows and tees), has only a minimal effect on accuracy.
PRODUCT FEATURES:
- Combined functionality of Flow Meter and Check Valve.
- NSF certified.
- Accuracy of +/- 2 GPM.
- Installation flexibility – far less space required than other flow meters.
- Clear, easy to read scale.
- Installs in minutes.
- No calibration required.
- Unique design results in maintained accuracy even with entrained air caused by suction leaks.
- Assembled in the USA.
- 5-year breakage warranty.
- Rugged construction.
- Pressure tested to 50psi.
- Design life of 15 years with spring replacement every 7.5 years.
