Description

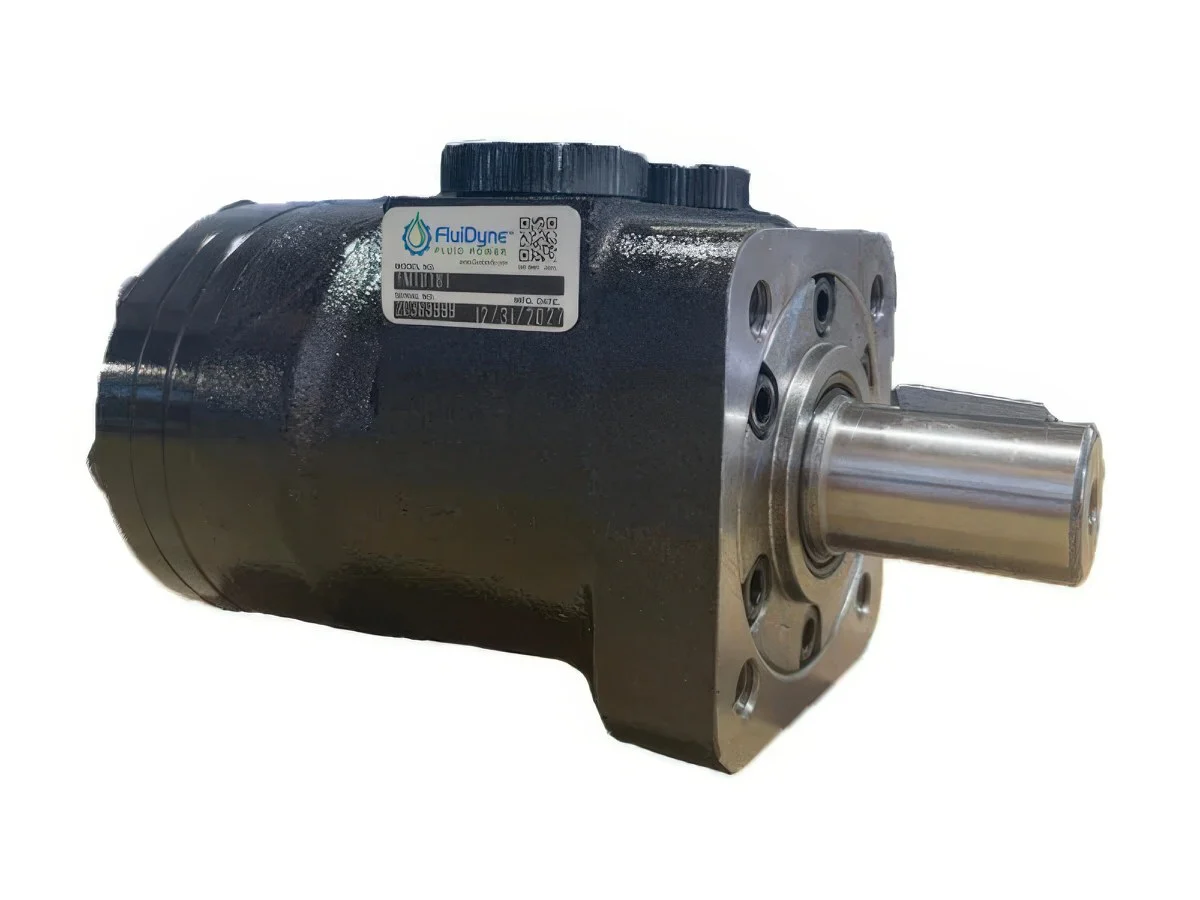

The Fluidyne FM14SQ06B400NBN is a robust orbital motor engineered for high-performance hydraulic applications. With a displacement of 400 CC, this motor offers exceptional efficiency and durability, making it suitable for a variety of industrial and mobile machinery.
Key Features and Benefits
- High displacement of 400 CC for powerful operation
- 4-bolt SAE A square flange for versatile mounting options
- 1″ 6B splined shaft provides robust drive engagement
- 1/2″ NPTF ports facilitate standard piping connections
- No case drain design for added efficiency
- Durably constructed with black paint finish for long-lasting performance
- Made in USA under strict quality standards
Specifications
- Model Number: FM14SQ06B400NBN
- Displacement: 400 CC
- Mount Type: 4-Bolt SAE A Square Flange
- Shaft Type: 1″ 6B Splined Shaft
- Ports: 1/2″ NPTF
- Width: 2.04″ (52MM)
- Case Drain: No Case Drain (7/16-20 O’Ring Plugged)
Applications
The Fluidyne FM14SQ06B400NBN orbital motor is ideal for a wide range of applications including:
- Construction equipment
- Material handling systems
- Agricultural machinery
- Hydraulic power units
- Other mobile hydraulic applications
Quality and Certification
This product is manufactured in accordance with Fluidyne’s high-quality standards and meets industry specifications for reliability and performance. Each unit undergoes comprehensive testing to guarantee consistent operations across all use cases.
Additional Information
To maintain optimal performance, regular inspection and maintenance are recommended. Ensure that the motor operates within specified parameters to extend its service life.
For technical support and assistance, contact our product specialists at (800) 823-4937.
