Description

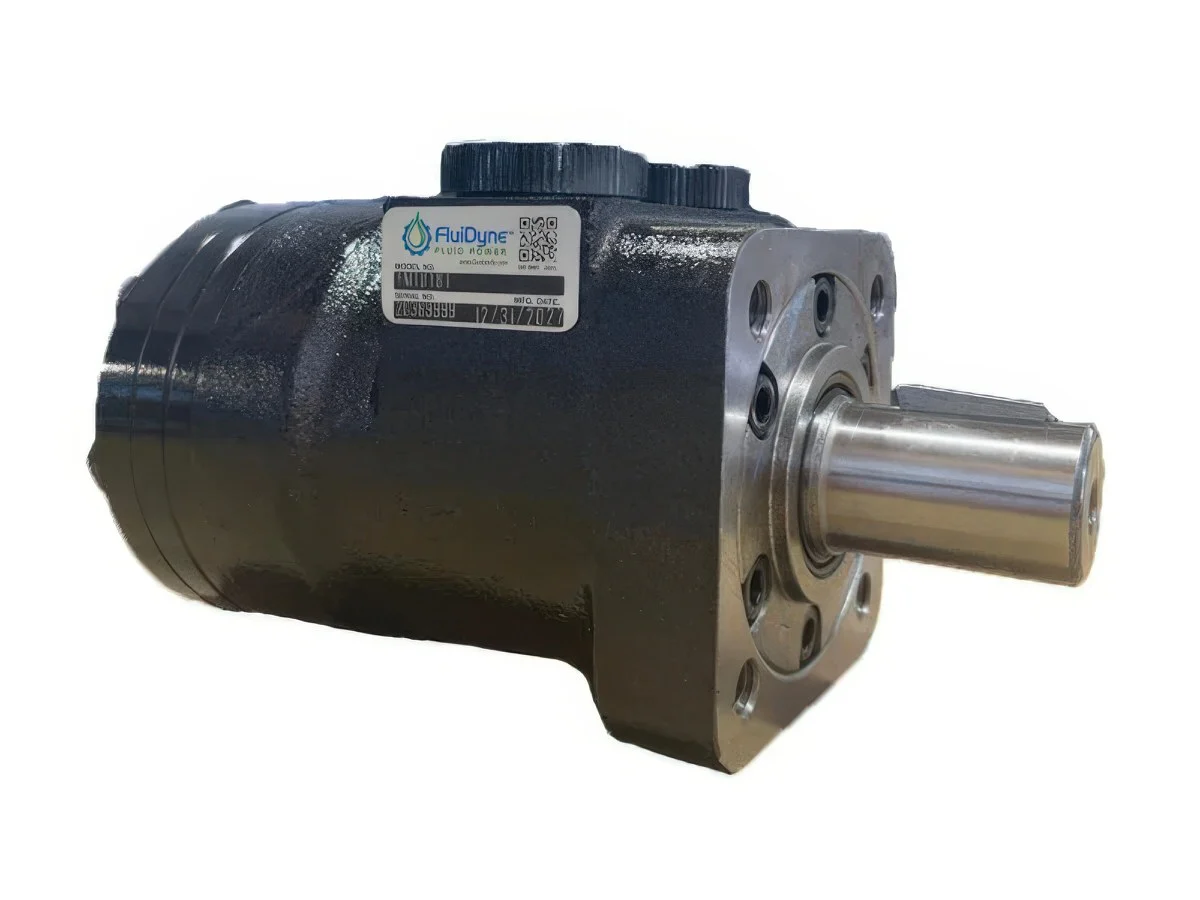

The Fluidyne FM14SQCH5100MBN orbital motor is engineered for high-efficiency performance in hydraulic applications. This robust motor is designed with a 4-bolt SAE A square flange and features a 1″ shaft with a .40″ crosshole, delivering excellent power and reliability in various industrial settings.
Specifications
- Model Number: FM14SQCH5100MBN
- Displacement: 100 CC
- Mount Type: 4 Bolt SAE A Square Flange
- Shaft Type: 1″ Shaft W/.40″ Crosshole
- Ports: Manifold Ports
- Width: 0.700″ (17.8MM)
- Case Drain: 7/16-20 O’Ring Case Drain (Plugged)
- Paint Status: Black Paint
Features and Benefits
- High-efficiency hydraulic performance
- Durable construction for extended service life
- Versatile mounting configurations for various applications
- Precision engineered for smooth and reliable operation
- Made in USA under stringent quality standards
Applications
- Material handling equipment
- Agricultural equipment
- Construction machinery
- Industrial machinery
- Mobile hydraulic systems
Quality and Certification
The Fluidyne FM14SQCH5100MBN motor adheres to the highest quality standards set by Fluidyne, ensuring each unit meets rigorous testing for hydraulic applications. This motor is built to provide reliable and consistent performance in the field.
For technical support and assistance, contact our product specialists at (800) 823-4937
