Description

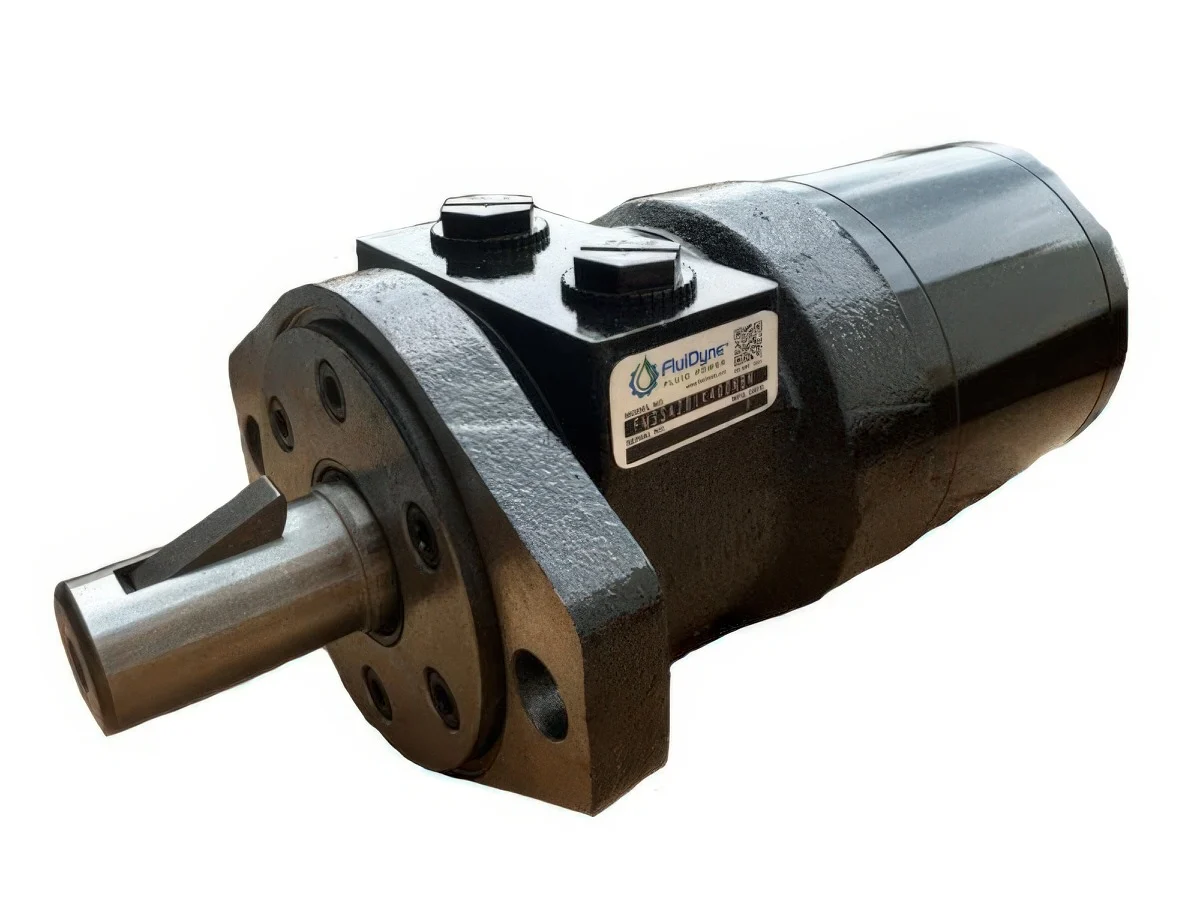

The Fluidyne FM34SQ01K160MBN is a robust orbital motor engineered for durability and efficiency in hydraulic applications. With a displacement of 160CC, this motor is designed to deliver consistent power and torque, making it suitable for a variety of industrial machinery and hydraulic systems.
Specifications
- Model Number: FM34SQ01K160MBN
- Displacement: 160 CC
- Mount Type: 4 Bolt SAE A Square Flange
- Shaft Type: 1″ Woodruff Keyed Shaft
- Ports: Manifold Ports 10MM
- Width: 1.24″ (31.5MM)
- Case Drain: No Case Drain (7/16-20; O’Ring Plugged)
- Paint Status: Black Paint
Features and Benefits
- High performance with 160CC displacement
- Secure mounting with 4 Bolt SAE A Square Flange
- Durable 1″ Woodruff keyed shaft for reliable power transmission
- Efficient manifold ports for simplified hydraulic connections
- Engineered for a long service life
- Made in the USA with stringent quality controls
Applications
- Industrial machinery
- Agricultural equipment
- Construction equipment
- Material handling systems
- Mobile hydraulic systems
Quality and Certification
The Fluidyne FM34SQ01K160MBN is manufactured in accordance with rigorous quality standards and adheres to industry certifications for hydraulic applications. Each unit undergoes thorough testing to ensure reliable performance and compliance with specifications.
