Description

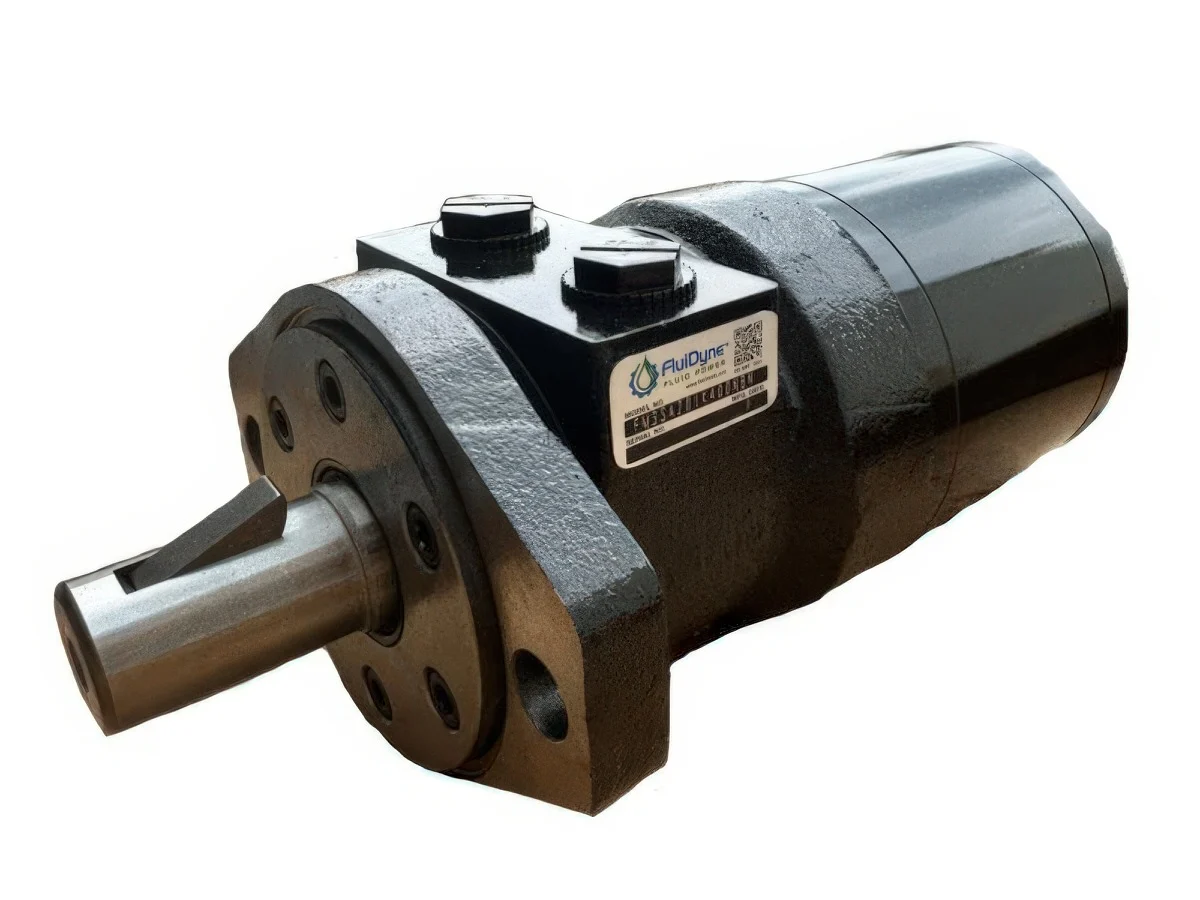

The Fluidyne FM34SQ01K315MBN is a robust orbital motor engineered for high-efficiency applications in various industrial sectors. This motor provides reliable power with its notable 315 CC displacement and is designed for compatibility with a multitude of hydraulic systems.
Specifications
- Model Number: FM34SQ01K315MBN
- Displacement: 315 CC
- Mount Type: 4 Bolt SAE A Square Flange
- Shaft Type: 1″ Woodruff Keyed Shaft
- Ports: Manifold Ports 10MM
- Width: 2.44″ (62MM)
- Case Drain: No Case Drain (7/16-20 ; O’Ring Plugged)
- Paint Status: Black Paint
Features and Benefits
- High-performance motor ensures efficient operation
- Durable construction designed to withstand tough operating conditions
- Versatile mounting options enhance compatibility across systems
- Designed without a case drain, simplifying installation
- Made in USA ensuring top-notch quality standards
Applications
- Construction machinery and equipment
- Agricultural machinery
- Material handling equipment
- Industrial hydraulic systems
- Mobile hydraulic applications
Quality and Certification
The Fluidyne FM34SQ01K315MBN motor is manufactured in accordance with strict quality control standards. It adheres to industry certifications, ensuring reliability and performance in demanding environments. Each motor undergoes rigorous testing to guarantee optimal performance and longevity.
For technical support and assistance, contact our product specialists at (800) 823-4937
