Description

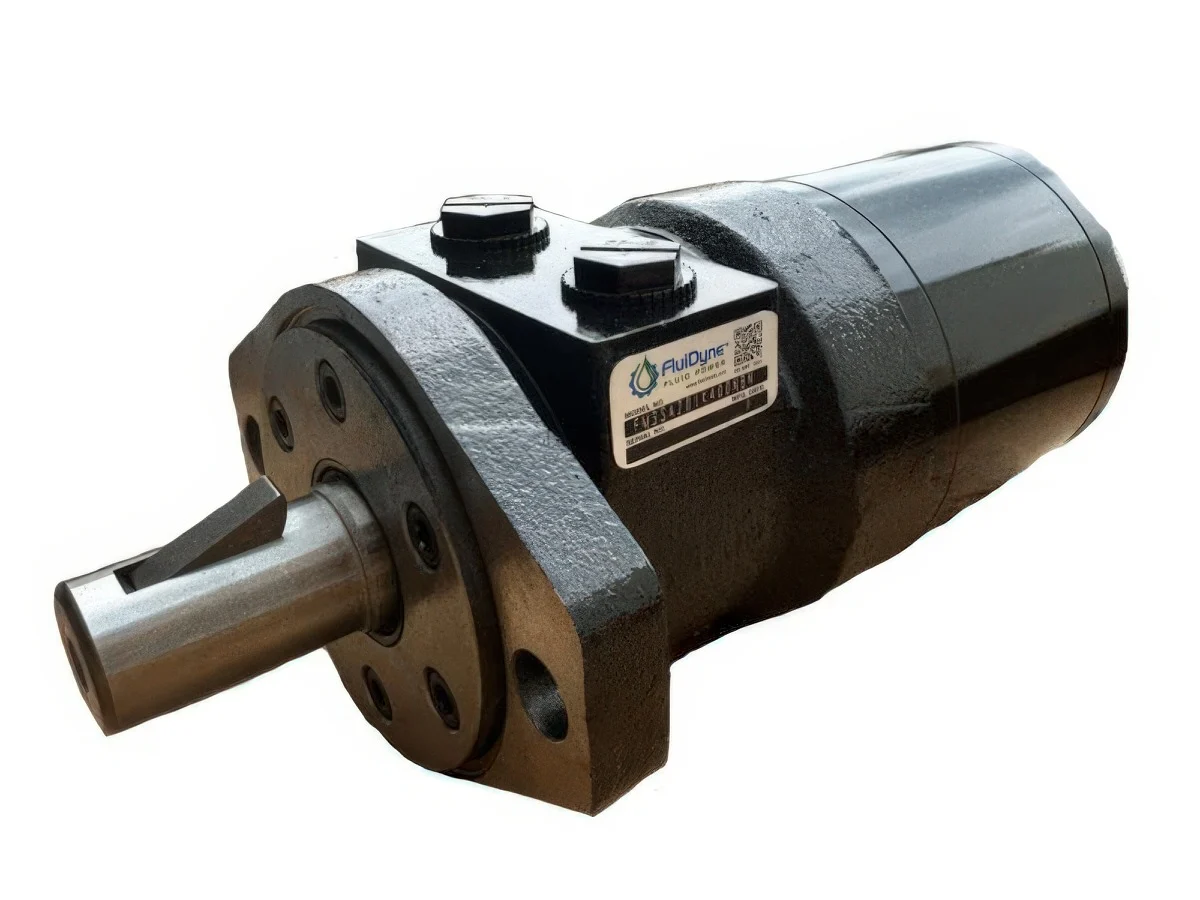

The Fluidyne FM34SQ06B100SBN is a robust orbital motor engineered to meet the demands of various industrial applications. This motor features a 4-bolt SAE A square flange for easy mounting and includes a 1″ 6B splined shaft, providing exceptional torque transmission and reliable performance.
Specifications
- Model Number: FM34SQ06B100SBN
- Displacement: 100 CC
- Mount Type: 4-Bolt SAE A Square Flange
- Shaft Type: 1″ 6B Splined Shaft
- Ports: 7/8-14 O’Ring Ports
- Width: 0.79″ (20MM)
- Case Drain: No Case Drain (7/16-20 O’Ring Plugged)
- Finish: Black Paint
Features and Benefits
- Engineered for efficient power transmission in various hydraulic applications
- Durable construction to withstand demanding conditions
- Compact design facilitates installation in limited spaces
- Reliable performance enhances overall system efficiency
- Made in USA under strict quality control standards
Applications
- Industrial machinery
- Agricultural equipment
- Construction machinery
- Material handling systems
- Mobile hydraulic systems
Quality and Certification
The Fluidyne FM34SQ06B100SBN motor is manufactured in accordance with Fluidyne’s high-quality standards, ensuring that it meets or exceeds industry specifications. Each motor undergoes rigorous testing to guarantee optimal performance and longevity.
For technical support and assistance, contact our product specialists at (800) 823-4937
