Description

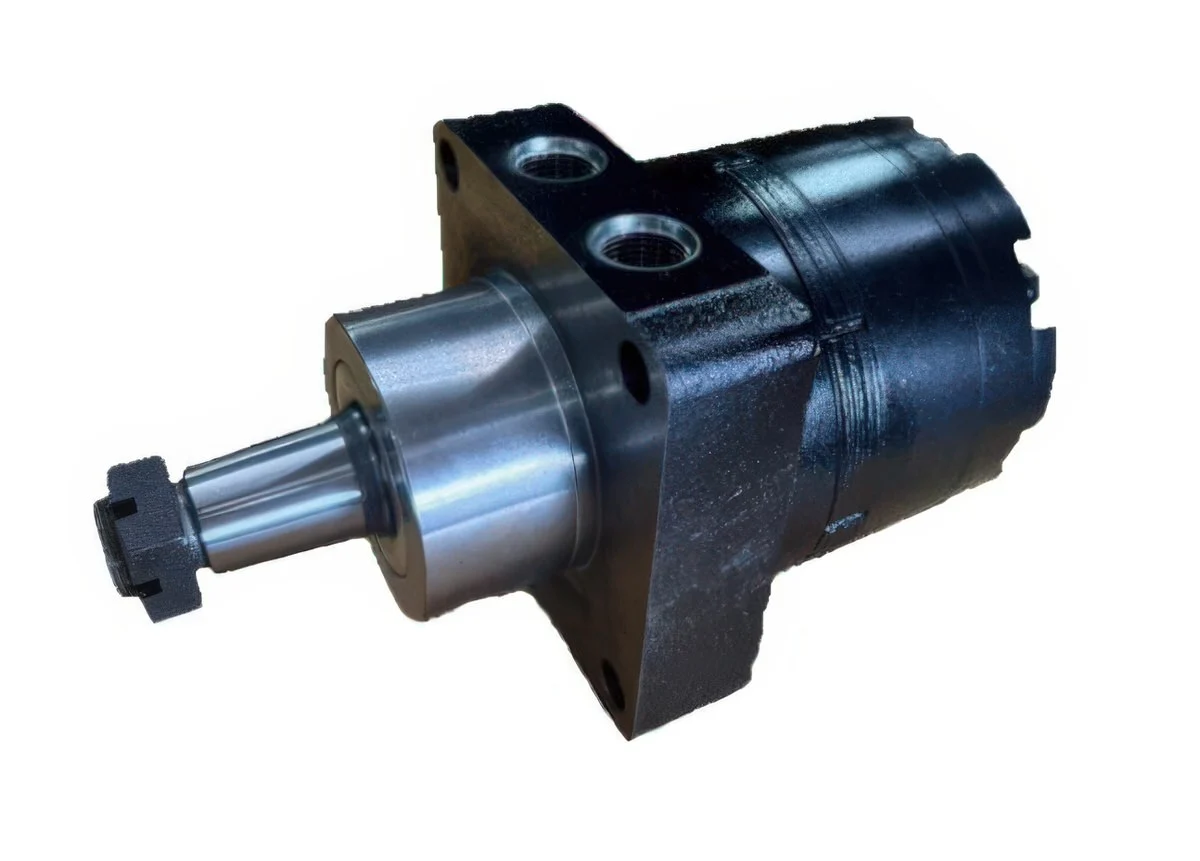

The Fluidyne FM504WH14P230SBN is a powerful orbital motor, engineered for high efficiency and durability in hydraulic applications. With a displacement of 230 CC per revolution, this motor is ideal for driving agricultural, construction, and industrial machinery.
Key Features and Benefits
- Designed for maximum efficiency and durability
- Compact and robust construction to withstand demanding conditions
- Versatile 4-bolt wheel mounting for easy installation
- Compatible with various hydraulic systems with 7/8-14 ORB ports
- Made in the USA, ensuring high-quality manufacturing and reliability
Operating Parameters
This orbital motor operates smoothly even under high-pressure conditions, enabling versatile use across multiple applications. The CCW rotation adds to its adaptability in various configurations.
Specifications
- Model Number: FM504WH14P230SBN
- Displacement: 230 CC/Rev
- Mount Type: 4 Bolt Wheel Mount
- Shaft Type: 1.25″ Tapered Keyed Shaft
- Ports: 7/8-14 ORB
- Width: 19.5MM (0.77″)
- Rotation: CCW
Applications
- Agricultural machinery
- Construction equipment
- Forestry equipment
- Material handling systems
- Mobile hydraulic solutions
Quality & Certification
The Fluidyne FM504WH14P230SBN motor meets rigorous quality standards and industry certifications. Each motor undergoes extensive testing to ensure it performs reliably under various conditions, making it a dependable choice for your hydraulic systems.
For technical support and assistance, contact our product specialists at (800) 823-4937
