Description

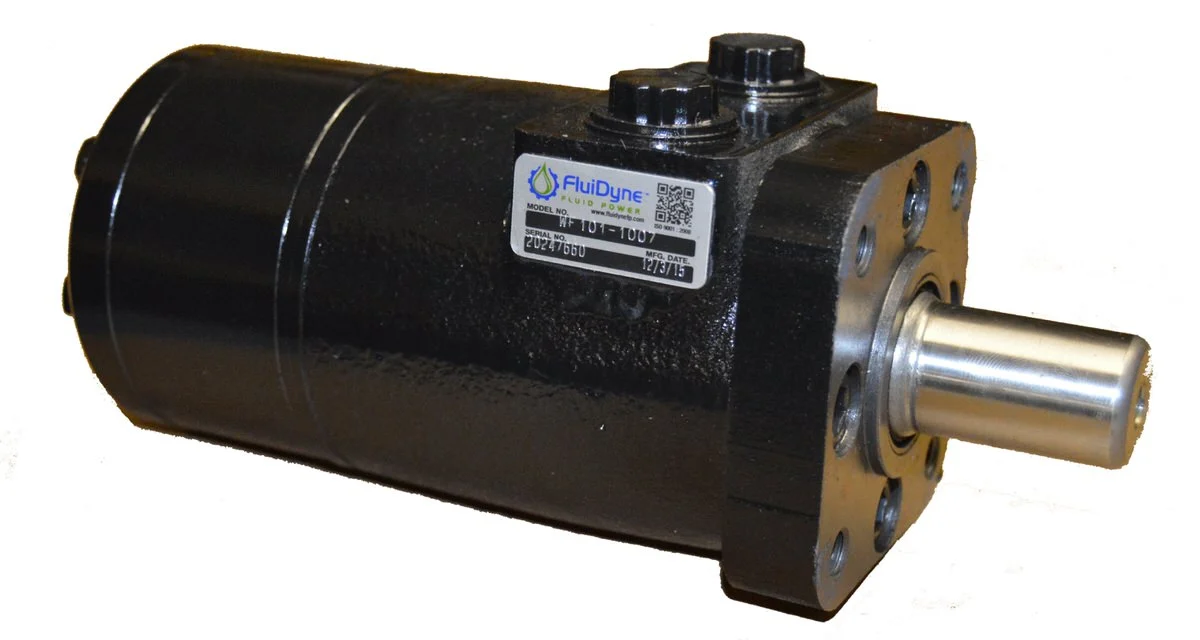

The Fluidyne WF101-1009 is a powerful and compact orbital motor specially designed for diverse hydraulic applications. With its 050 CC displacement and 4-bolt SAE A square flange, this motor is built to provide reliable performance and durability in challenging environments.
Specifications
- Model Number: WF101-1009
- Displacement: 050 CC
- Mount Type: 4-Bolt SAE A Square Flange
- Shaft Type: 1″ Woodruff Keyed Shaft
- Ports: 7/8-14 O’Ring Ports
- Width: 0.28″ (7MM)
- Case Drain: No Case Drain (7/16-20 O’Ring Plugged)
- Finish: Black Paint
Features and Benefits
- Compact design for easy installation
- Durable black paint finish for corrosion resistance
- Reliable operation with effective torque performance
- Versatile applications in industrial and mobile machinery
- Made in USA under strict quality control standards
Applications
- Construction equipment
- Agricultural machinery
- Material handling systems
- Automated machinery
- Mobile hydraulic systems
Quality and Certification
The Fluidyne WF101-1009 is manufactured in accordance with Fluidyne’s rigorous quality standards, ensuring consistent reliability and performance. Each motor undergoes rigorous testing to confirm that it meets or exceeds industry specifications for hydraulic applications.
For technical support and assistance, contact our product specialists at (800) 823-4937
