Description

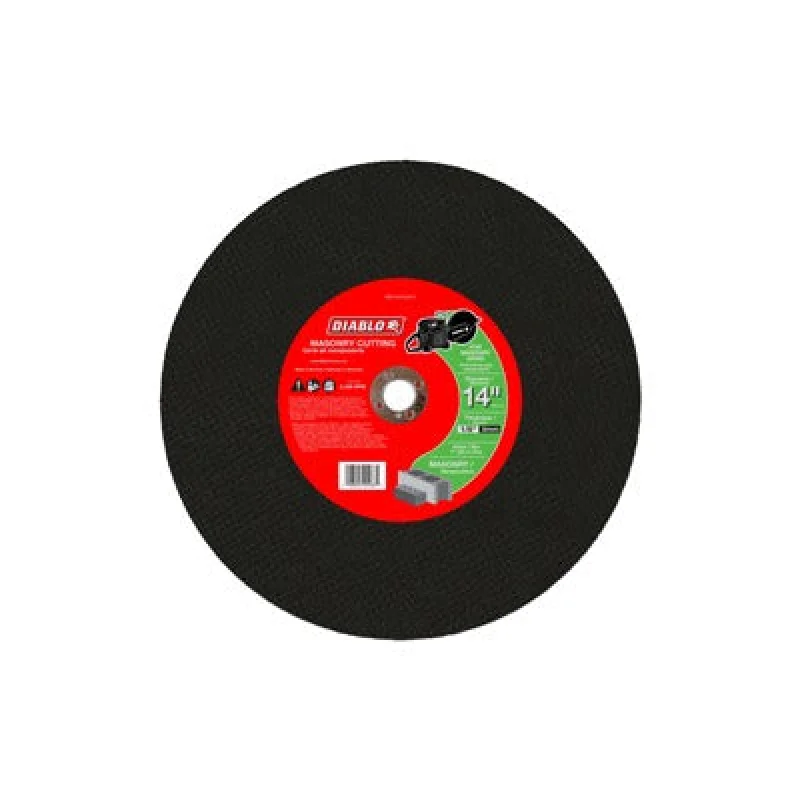

The FREUD DBD140125A01C is a 14-inch high-speed masonry cut-off disc engineered for demanding cut-off work on concrete, block, brick, and similar masonry materials. Built with an aluminum oxide blend abrasive, this disc cuts through hard masonry faster than standard cut-off discs while maintaining an extended service life. The disc measures 14 inches in diameter, 0.125 inches thick, with a 1-inch arbor bore. Full reinforcement construction keeps the disc stable under the lateral and rotational loads common in handheld cut-off saw applications. Each package contains 5 discs.
This disc is intended for use with handheld cut-off saws in residential and commercial masonry work. Typical applications include cutting concrete block, brick, stone, and mortar joints. Its 14-inch diameter and thin 0.125-inch kerf make it well suited for work in tight or hard-to-reach areas where a larger or thicker disc would be difficult to maneuver. The disc is designed for high-speed operation, making it appropriate for production cutting scenarios where throughput and disc longevity both matter.
Key Features
- Aluminum oxide blend abrasive for fast cutting and extended disc life
- 0.125-inch thin kerf reduces material removal and cutting resistance
- Fully reinforced construction rated for handheld cut-off saw use
- 14-inch diameter with 1-inch arbor bore fits standard cut-off saws
- Geometry suited for cutting in confined or hard-to-reach areas
- Sold in a 5-disc package for job-site convenience
Compatibility
Designed for use with handheld cut-off saws accepting a 14-inch diameter disc with a 1-inch arbor bore, intended for masonry cutting applications.
Installation Notes
Installation and disc changes should be performed by a qualified operator following the saw manufacturer’s guidelines and ANSI B7.1 safety requirements for abrasive wheels. Always power down and disconnect the saw before mounting or removing a disc. Inspect the disc for cracks or damage before each use and never operate above the maximum RPM rating marked on the disc. Personal protective equipment including eye protection and a dust mask rated for silica dust is required when cutting masonry materials.
Technical Specifications
- Diameter: 14 inches
- Thickness: 0.125 inches
- Arbor Bore: 1 inch
- Abrasive Material: Aluminum Oxide Blend
- Application: Masonry
- Disc Type: High Speed Cut-Off
- Reinforcement: Fully Reinforced
- Package Quantity: 5
- Unit of Measure: EA
- Weight: 7.5 pounds
Standard Information
- Brand: FREUD
- Manufacturer Part Number: DBD140125A01C
