Description

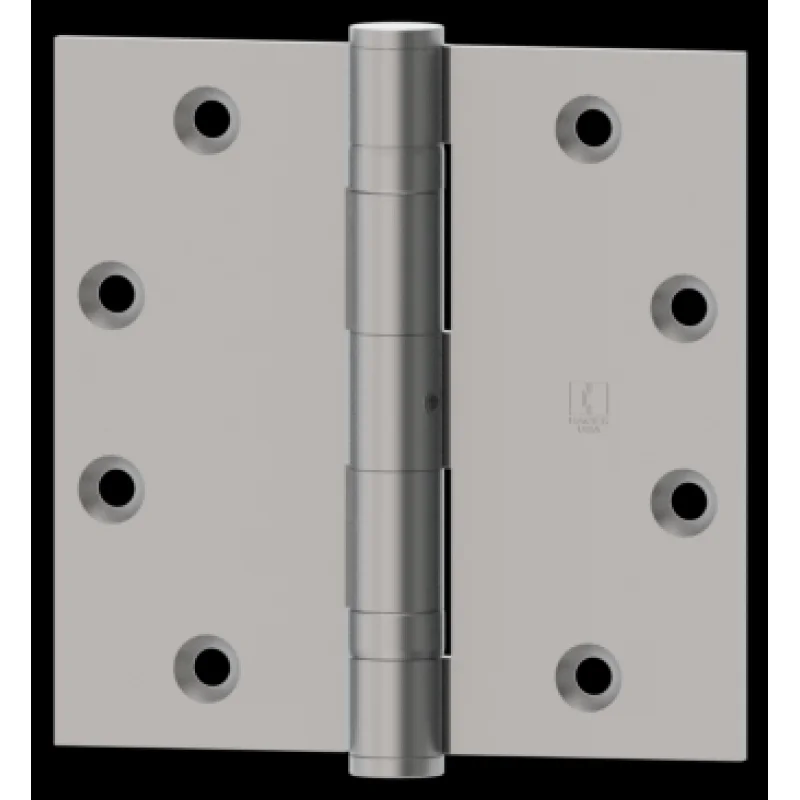

The HAGER HINGE BB127941226DNRP is a full mortise, standard weight ball bearing hinge designed for commercial and residential door installations. Measuring 4.5 inches x 4.5 inches, it features a non-removable pin (NRP) for added security, preventing the hinge pin from being extracted from the exposed side of the door. The satin chrome finish provides a clean, low-sheen appearance suited to both aluminum and wood door frames. Ball bearing construction reduces friction and supports smooth, consistent door swing over high-cycle use. Licensed door and hardware installers are the typical tradespeople for this product.
This hinge is suited for full mortise applications on standard-duty interior and exterior doors in commercial buildings, offices, schools, and multifamily residential projects. It fits standard door frame preparations requiring a 4.5 inch x 4.5 inch mortise cutout. The non-removable pin feature makes it particularly appropriate for outswing doors where the hinge barrel is accessible from the unsecured side. No specific compatible model families were identified in the product data.
Key Features
- Full mortise design for flush, clean installation into door edge and frame
- Non-removable pin construction adds tamper resistance on exposed-side applications
- Ball bearing operation reduces friction for smooth, long-cycle door swing
- 4.5 inch x 4.5 inch leaf size suits standard commercial and residential door preparations
- Satin chrome finish resists tarnish and coordinates with common commercial hardware finishes
- Standard weight rating appropriate for typical interior and light commercial exterior doors
Compatibility
Designed as an OEM-style replacement or new-installation hinge for full mortise door preparations requiring a 4.5 inch x 4.5 inch standard weight ball bearing hinge with a non-removable pin.
Installation Notes
Installation is typically performed by a licensed door hardware installer or finish carpenter. Power down any electric latch or access control hardware before beginning work. Mortise pockets must be clean and sized correctly before seating the hinge leaf to ensure flush fitment and proper door swing. Follow applicable building codes for door hardware installation, including fire-rated door assembly requirements where applicable.
Technical Specifications
- Hinge Size: 4.5 inches x 4.5 inches
- Hinge Type: Full Mortise Standard Weight Ball Bearing
- Pin Type: Non-Removable
- Finish: Satin Chrome
- Package Length: 6 inches
- Package Width: 2.6 inches
- Package Height: 0.7 inches
- Weight: 1.1 pounds
- Sales Unit: Each (EA)
Standard Information
- Brand: HAGER HINGE
- Manufacturer Part Number: BB127941226DNRP
