Description
Hayward; WG1154SPAK2; Dual suction outlet; adjustable collar; 8″ round; 2″ SKT x 2″ FIP

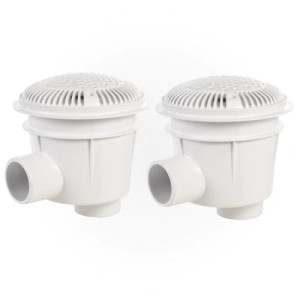

Hayward WG1154SPAK2 2″ SKT x 2″ FIP 8″ Round Dual Suction Outlet with Adjustable Collar 2 per Pack. Hayward VGB compliant round suction outlets for concrete pools are available in a wide range of plumbing configurations, plaster collar options and colors
Features
- Sumps accommodate the use of SP1056 hydrostatic relief valve
- Replacement covers retrofit to existing Hayward frames
- 7-Years lifetime Warranty
- 1-Year limited warranty
- All Hayward drain covers can be used as a single replacement cover when installed on the same suction line as an EcoStar(R) SVRS or a Stratum(R) SVRS
Specifications
| Application | For residential, commercial pools, concrete, vinyl and fiberglass surfaces |
| Bottom Outlet Pipe Size | 2 Inch FIP |
| Brand | Hayward |
| Color | White |
| Cover Open Area | 8.1 sq-Inch |
| Flow Rate | 125 gpm (Horizontal), 72 gpm (Vertical) |
| Includes | AV Grate, Adjustable Plaster Collar |
| Item Name | Dual Suction Outlet – Round |
| Material | ABS Plastic |
| Packaging Quantity | 2/Pack |
| Side Outlet Pipe Size | 2 Inch FIP |
| Size | 8 Inch Dia |
| Standards Approvals | VGB Compliant, Tested to ASME A112 19.8b-2009, ANSI/APSP-16 Standards and Meets CPSC Requirements |
| Type | Suction Outlets |
