Description

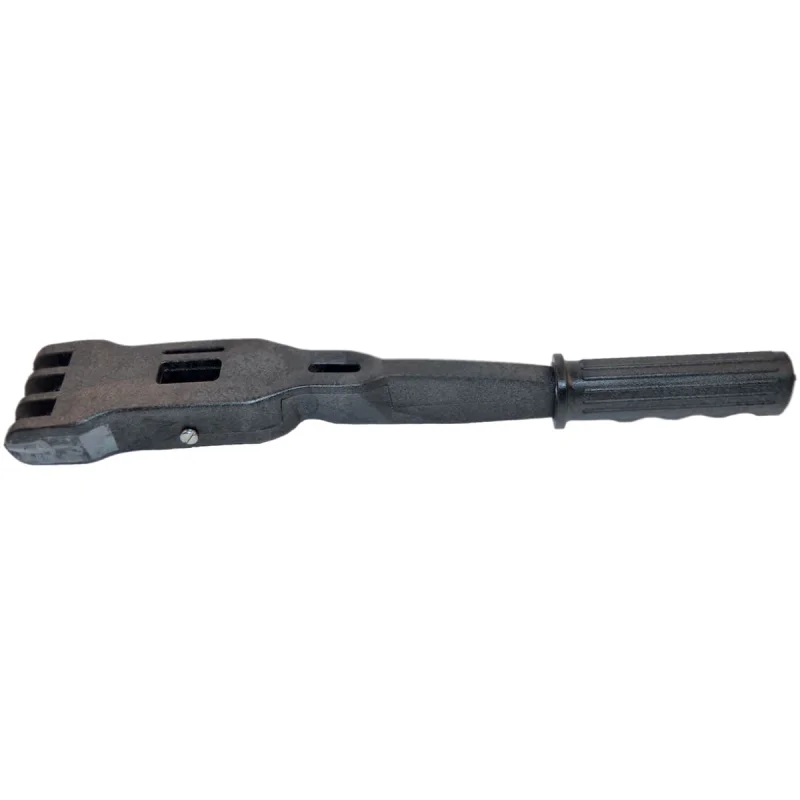

The Hayward Complete Noryl Bump Handle (ECX1040) is the OEM replacement bump handle for Perflex Extended-Cycle DE filters, restoring the manual backwash function that keeps your filter running at peak efficiency.
What It Does
The bump handle connects to the bump shaft assembly on Perflex DE filters, allowing you to manually redistribute DE filter media inside the filter body. Actuating the handle dislodges spent DE powder from the flex tubes and recoats them with fresh media extending filter cycles without a full backwash. Constructed from Noryl, a glass-reinforced thermoplastic resin known for its dimensional stability and chemical resistance in pool water environments.
Specifications
| Hayward Part Number | ECX1040 |
| Material | Noryl (glass-reinforced thermoplastic) |
| UPC | 610377024129 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | Perflex Extended-Cycle DE Filter 20 Sq.Ft. (with Clamp) | W3EC40AC |
| Hayward | Perflex Extended-Cycle DE Filter 25 Sq.Ft. (with Clamp) | W3EC50AC |
| Hayward | Perflex Extended-Cycle DE Filter 27 Sq.Ft. | W3EC65A |
| Hayward | Perflex Extended-Cycle DE Filter 40 Sq.Ft. | W3EC75A |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment’s manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before replacing the bump handle, inspect the bump shaft and O-ring at the base of the assembly. A worn shaft O-ring is a common source of air leaks on Perflex filters and is inexpensive to replace at the same time. If the handle was difficult to actuate prior to failure, check the bump shaft for scoring or debris buildup before reinstalling the new handle.
