Description

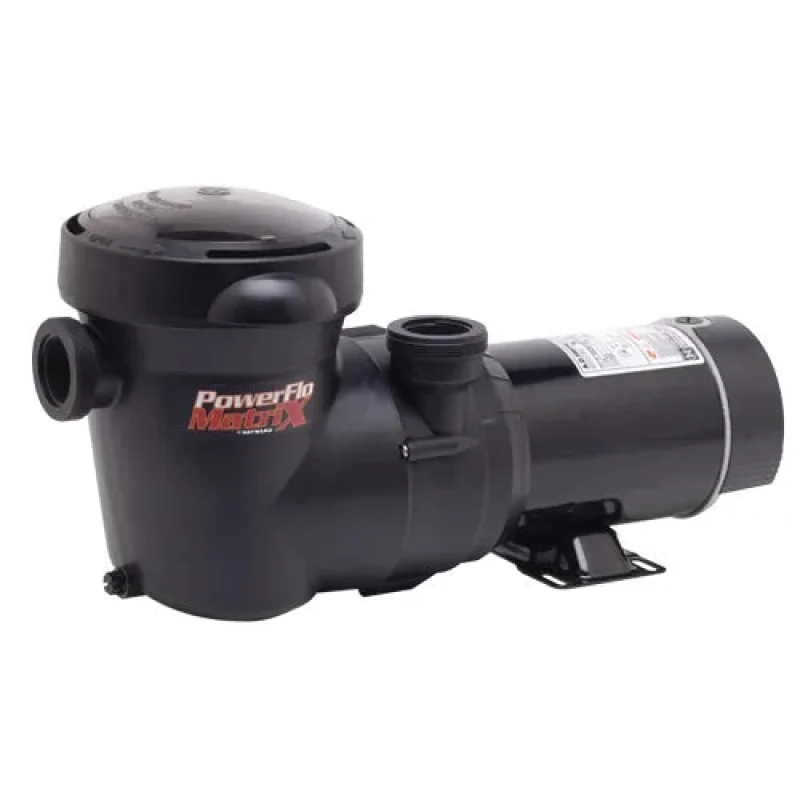

The Hayward PowerFlo Matrix High Efficiency Pump (W3SP1592) delivers dependable, efficient circulation for permanently-installed above-ground pools, with a push-button discharge that adapts to your pad layout.
Unique Features & Technology
- Convertible discharge orientation: a single push-button rotates the discharge port a quarter turn between vertical and horizontal, simplifying plumbing layout at the pad.
- Strainer basket for debris collection.
- C-Clip strainer basket retainer secures the strainer basket in place within the strainer housing.
- Quick-connect threaded intake and discharge ports with molded-in thread stops for consistent, secure plumbing connections.
- Integral drain plug built into the strainer body for straightforward seasonal winterization.
- Rear-mounted, energy-efficient motor switch for protected on/off control at the pump.
- Rated WEF 3.4 and DOE compliant, reflecting current federal efficiency standards for pool pump motors.
Specifications
| Hayward Model | W3SP1592 |
| Total HP | 0.85 HP |
| Motor Type | ODP |
| Number of Speeds | Single Speed |
| Voltage at 60 Hz | 115V |
| Phase | Single Phase |
| WEF | 3.4 |
| DOE Compliant | Yes |
| Pool Type | Above Ground |
| Warranty – Parts | 1-year |
Pool Size & Application
The PowerFlo Matrix is engineered for permanently-installed above-ground swimming pools; it is not designed for storable pools.
System Integration
This pump operates independently via its rear-mounted switch. Quick-connect threaded intake and discharge ports with molded-in thread stops simplify plumbing hookup, and Hayward recommends union connections such as the Hayward Union Connector Pack (SP1500UNPAK2) for easier service access and seasonal removal.
Common Replacement Parts
Keep this pump running with these commonly-replaced wear parts: Strainer Basket (SPX5500F), Strainer Cover O-Ring (SPX5500H), Strainer Retainer C-Clip (SPX5500G), and Pipe Plug with Gasket (SPX1700FG).
Poolaroo Pro Tip
Check and clean the strainer basket regularly the C-Clip retainer secures the basket in place, and the strainer cover is designed to be hand-tightened (with pressure released before removal) for straightforward access. At season’s end, remove the integral drain plug from the strainer body to fully drain the pump before storing it indoors, and clean/lubricate the strainer cover O-ring with a non-petroleum lubricant each time the cover is removed to keep it sealing properly.
