Product Overview

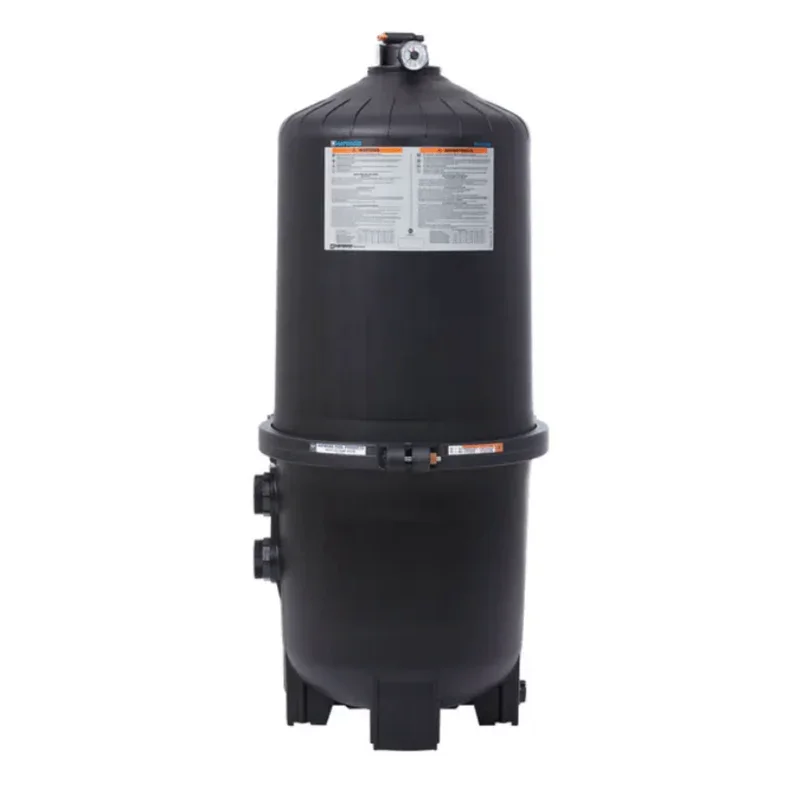

The Hayward Pro-Grid 60 sq. ft. DE Filter W3DE6020 is a high-capacity vertical grid DE filter designed to deliver superior water clarity, efficient flow, and dependable filtration performance for in-ground pools and spas. Using diatomaceous earth filtration, this filter captures fine debris and suspended particles to help produce sparkling clean pool water.
The Pro-Grid series combines durable glass-reinforced co-polymer tank construction with a service-friendly vertical grid design. High-impact grid elements support up-flow filtration and top-down backwashing, while the heavy-duty one-piece flange clamp allows access to internal components without disturbing plumbing connections.
Important: This model does not include a backwash valve. A compatible Hayward multiport or slide valve must be purchased separately.
Ideal For
Residential in-ground swimming pools
In-ground spas and pool/spa combinations
Large residential pool systems requiring DE filtration
Customers looking for superior fine-particle water clarity
Replacement for Hayward DE6020 / W3DE6020 filter systems
Pool owners upgrading from sand or smaller filter systems
Applications requiring a 60 sq. ft. vertical grid DE filter
Key Features
60 sq. ft. DE Filtration Area
The 60 square foot effective filtration area provides excellent dirt-holding capacity and fine-particle filtration for larger in-ground pool and spa systems.
Superior DE Water Clarity
Diatomaceous earth filtration helps capture very fine particles that may pass through standard filtration systems, producing clearer, cleaner pool water.
Durable Glass-Reinforced Co-Polymer Tank
The filter tank is made from durable glass-reinforced co-polymer material designed to handle demanding pool equipment environments and resist corrosion.
High-Impact Vertical Grid Elements
The internal grid elements are designed for up-flow filtration and top-down backwashing, helping maximize efficiency and simplify cleaning.
Rapid-Release Manual Air Relief
A high-capacity manual air relief valve helps release trapped air quickly with a simple quarter-turn lever.
One-Piece Flange Clamp
The heavy-duty, tamper-proof flange clamp securely fastens the tank top and bottom while allowing quick access to internal components for service.
Self-Aligned Tank Design
The tank top and bottom are designed to align easily, making access to the grid elements faster and simpler during maintenance.
2″ Full-Flow Internal Plumbing
Full-flow internal piping helps reduce resistance and supports strong, efficient water movement through the filter.
Valve Flexibility
The filter can be paired with compatible Hayward multiport or slide valves depending on the pool systems plumbing size and installation preference.
Benefits
The Hayward W3DE6020 is a strong choice for pool owners who want premium DE filtration with high capacity and straightforward service access. DE filters are commonly selected for their ability to deliver excellent water clarity by trapping fine particles and debris.
With its 60 sq. ft. filtration area, 7.5 lb DE charge, 150 GPM residential design flow rate, and reinforced tank construction, this model is well suited for larger in-ground pools and pool/spa systems when properly matched with the pump, plumbing, and valve.
Specifications
| Specification | Details |
|---|---|
| Brand | Hayward |
| Series | Pro-Grid |
| Model | W3DE6020 |
| SKU | W3DE6020 |
| UPC / Barcode | 610377387897 |
| Filter Type | DE / Diatomaceous Earth |
| Effective Filtration Area | 60 sq. ft. |
| DE Required | 7.5 lbs. |
| Valve Included | No |
| Backwash Valve Required | Yes, sold separately |
| Residential Design Flow Rate | 150 GPM |
| Public Design Flow Rate | 120 GPM |
| Number of Filter Elements | 10 |
| Tank Material | Glass-reinforced co-polymer |
| Internal Plumbing | 2″ full-flow |
| Product Dimensions | 46.5″ H x 24″ L x 24″ W |
| Product Height | 46.5″ |
| Product Length | 24″ |
| Product Width | 24″ |
| Product Weight | 84 lbs. |
| Shipping Weight | 83 lbs. |
| Pool Type | In-ground |
| Pressure Gauge Included | No |
| DE Included | No |
| Parts Warranty | 1-Year Manufacturer Parts Warranty |
Compatible Valve Options
Compatible valve selection depends on the pool system plumbing size and installation preference.
| Valve Type | Common Compatible Option |
|---|---|
| 1-1/2″ Multiport Valve | Hayward SP0710XR50 |
| 2″ Multiport Valve | Hayward SP0715XR50 |
| 2″ Slide Valve | Hayward SP0410X502S |
| 2″ Selecta-Flo Valve | Hayward SP0740DE |
Whats Included
Hayward W3DE6020 Pro-Grid 60 sq. ft. DE filter tank
Internal vertical grid assembly
One-piece flange clamp system
Manual air relief assembly
Integral lift handles
Low-profile filter base
Backwash valve is not included.
Pool-grade DE powder is not included.
Pressure gauge is listed by Hayward as not included for this model.
Customer-Facing Q&A
Does this filter include the backwash valve?
No. The Hayward W3DE6020 does not include a backwash valve. A compatible Hayward multiport or slide valve must be purchased separately.
How much DE powder does this filter require?
This filter requires 7.5 lbs. of pool-grade diatomaceous earth after a full cleaning or recharge.
Is DE powder included?
No. DE powder must be purchased separately.
What is the flow rate?
The Hayward W3DE6020 has a 150 GPM residential design flow rate and a 120 GPM public design flow rate.
Is this a cartridge filter?
No. This is a DE filter. It uses internal grids coated with diatomaceous earth powder.
Is this a sand filter?
No. This filter does not use sand. It uses DE powder as the filter media.
What type of pool is this filter for?
This model is designed for in-ground pool and spa applications.
How many filter elements are inside?
Hayward lists this model with 10 filter elements.
Does this filter include a pressure gauge?
Hayward lists the W3DE6020 as pressure gauge not included.
How is this filter cleaned?
The filter is cleaned by backwashing through a compatible backwash valve. For deeper maintenance, the tank can be opened and the grid assembly can be removed and rinsed.
