Description
DISCONTINUED – see 30-3801GRY in gray or alternate part/jet 50-3500GRY also in gray.
Black is no longer available.

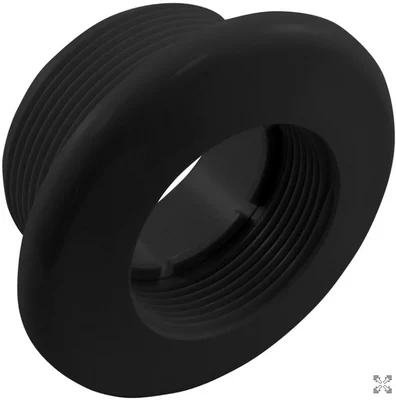

Hydroair 30-3801BLK Jet Wall Fitting Black requires a 2 3/8 inch hole size.
| Jet Part Type | Wall Fitting |
| Manufacturer | HydroAir/Balboa |
| Model | Hydro Jet |
| Hole Size | 2-1/2″ |
| Face Diameter | 3-3/8″ |
| Base Diameter | 2-3/8″ w/Threads |
| Total Length | 1-1/2″ |
| Color | Black |
| Special Feature | Six Notches and Threads Inside Face |
Replaces,30-3801BLK,30-3801,30-3801,55-470-1702 and 10-3801BLK.
| 1 | Jet Cmplt,BWG/HAI Hydro Jet,2-3/8″hs,Eyel,a1-1/2″s,w1-1/2″s | 10-5100WHT |
| 2 | Jet Body, BWG/HAI Hydro, 2-3/8″hs, a1-1/2″s, w1-1/2″s | 10-4100 |
| 3 | Gasket, Balboa Water Group/HAI Slimline Suction/Hydro Jet | 30-3804CLR |
| 4 | Wall Fitting, BWG/HAI Hydro Jet/Strip Skimmer, 2-3/8″hs, Wht | 30-3801WHT |
| 4 | Wall Fitting, BWG/HAI Hydro Jet, 2-3/8″hs, Blk | 30-3801BLK |
| 4 | Wall Fitting, BWG/HAI Hydro Jet, 2-3/8″hs, Gry | 30-3801GRY |
| 4 | Wall Fitting,BWG/HAI Hydro Jet,2-9/16″l,2-3/8″hs,Long,White | 30-3803WHT |
| 4a | Nut, Balboa Water Group/HAI Hydro Jet,Wall Fitting,White,2″ | 30-3807WHT |
| 5 | Eyeball, Balboa Water Group/HAI Hydro Jet, White | 30-3805WHT |
| 6 | Retaining Ring, Balboa Water Group/HAI Hydro Jet, White | 30-3806WHT |
| 7 | Jet Intl, BWG/HAI Hydro Jet, Long, 3-3/8″fd, Dir, w/Nut, Wht | 10-3300WHT |
| 7 | Jet Intl, BWG/HAI Hydro Jet,3-3/8″fd,w/o Nut,Dir,Smth,White | 50-3500WHT |
| 7 | Jet Intl, BWG/HAI Hydro Jet,3-3/8″fd,w/o Nut,Dir,Smth,Bone | 10-3500BON |
| 7 | Jet Intl, BWG/HAI Hydro Jet, 3-3/8″fd, w/o Nut, Dir, Gry | 50-3500GRY |
| 7 | Jet Intl,BWG/HAI Hydro Jet,Long,3-3/8″fd,w/o Nut,Dir,White | 10-3600WHT |
| 7 | Jet Intl,BWG/HAI Hydro Jet,Long,3-3/8″fd, w/o Nut,Dir,Brn | 10-3600BRN |
| 7 | Jet Intl,BWG/HAI Hydro Jet,Long,3-3/8″fd,w/o Nut,Dir,Blk | 10-3600BLK |
| 8 | Tool, Spa Jet Retaining Ring, HydroAir/Balboa Hydro Jet | HAD4040 |
| 9 | Tool, Wall Fitting, 6-Tip, HydroAir/Balboa Hydro Jet | HYD6402 |
| 12 | Extension Kit, BWG/HAI Hydro Jet Gunite, w/Nozzle, Nut | 10-4400 |
| 13 | Std Eye & Ring Black | 10-3808BLK |
| 13 | Std Eye & Ring Brown | 10-3808BRN |
| 13 | Eyeball, BWG Hydro Jet, w/ Retainer Ring White | 10-3808WHT |
See the links above for related parts.
