Description

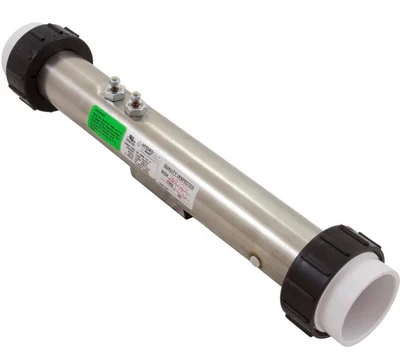

Hydroquip 5.5kW, 230V 15 inch heater 26-0535-7S-K includes heater tailpieces. Balboa 15×2 inch.
5.5kw heater
26-0535-7S-K spa heater replaces 50134 , 10455 , 20-00329 , 26-0535-7S-K , 26-0535-7S-KP01 , 26-0535-7T-K , 26-58104-K , 2600-050 , 2605357SK , 50071 , View More 50076 , 50080 , 50096 , 50134 , 50150 , 740-0650 , 7400650 , 9711-17 , C2550-0535 , C2550-0535-TPS , C2550-05351ET
| Housing Configuration | Straight |
| Heater Length | 15″ |
| Lead End Terminal Location | 4-1/4″ |
| Threaded Tap Orientation | 3 O`Clock |
| Threaded Tap Location | 13″ From Leading End |
| Kilowatts | 1.375kW, 5.5kW |
| Voltage | 115v, 230v |
| Sensor Stud Location | 7-1/2″ |
| Sensor Stud Orientation | 6 O`Clock |
| Mounting Stud Type | None |
| Heater Size | 2″ |
| Heater Application | Balboa Water Group |
26-0535-7S-K can be used to replaced discontinued Aquatemp heaters as found in Great Lakes, Emerald and other spas.
Need a pressure switch? See 3902.
Need heater jumper straps? See 48-0023.
