Description

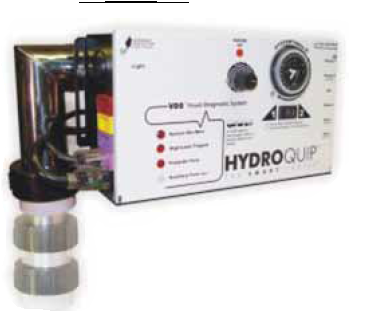

HYDROQUIP | AIR BUTTON CONTROL SYSTEM | CS4009-US1
GENERAL DESCRIPTION:
SPA CONTROL WITH HEATER
120V OR 240V CONVERTIBLE
AIR BUTTON TYPE CONTROL
THIS IS ONE OF THE CS6000 SLIDE SERIES SPA CONTROLS WHICH
IS MADE WITH A STAINLESS STEEL FLOW THRU “SLIDE” HEATER.
THERE IS A CIRCUIT AND RECEPTACLE FOR A STANDARD AIR BUTTON TYPE
THE SPASIDE CONTROL IS NOT REQUIRED BUT MAY BE ADDED
SEE RELATED ITEMS BELOW FOR OPTIONAL SPASIDES
OTHERS MAY BE USED IN ADDITION TO THESE
**********************************************************
DIMENSIONS:
LENGTH: 15″
HEIGHT: 11″
DEPTH: 6″
**********************************************************
INCLUDES:
4 AIR BUTTONS
AIR TUBING
8 FT, 12 VOLT TWIST-LOCK LIGHT HARNESS WITH BULB
(NO WALL FITTING OR REFLECTOR)
EQUIPMENT CORDS INCLUDED:
THESE ARE MOLDED, LIGHTED, 4 FOOT CORDS
2-SPEED PUMP CORD
1-SPEED PUMP 2 CORD
AIR BLOWER CORD
OZONATOR CORD
**********************************************************
RELATED ITEMS:
9246-15 OPTIONAL SPASIDE, 2, 3, OR 4 BUTTON
9246-16 OPTIONAL SPASIDE WITH LED TEMP DISPLAY, 2, 3, OR 4 BUTTON
9246-20 SPASIDE ADAPTOR PLATE, 8-5/16″ x 3-5/16″ OUTSIDE
9284-111
THIS IS THE SAME SYSTEM AS THE 9284-113, BUT IT DOES NOT INCLUDE
AN INSTALLED HIGH CURRENT GROUND FAULT INTERRUPTER
