Description

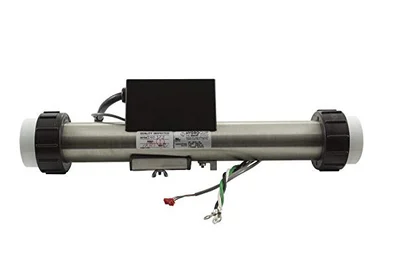

Hydroquip Heater 48-0007Bg is HydroQuip 15″ x 2″ Versiheat assembly with 60″ cord and pressure switch included.
Versi-Heat 9-Pin Retro-Fit, 15″ Heater Assembly 60″ Cord, Kit.
Also will need to replace hi limit with 34-0201B-K.
On sale now.
C2550-3200ET and 26-0039 indirect replacement – this is a 2 inch heater that may be used to replace the discontinued 3 inch heater, although plumbing modifications will be necessary to bring the plumbing system to 2 inch plumbing. Not a direct replacement for 3 inch heaters – if using to retrofit the 3 inch flow through heater, plumbing and electrical/sensor modifications are needed.
The black box conceals the power wires and pressure switch. This heater is used to replace an existing HydroQuip Versiheater with a 9 pin cord.
The 9 pin cord style has been discontinued. This heater will serve as a direct replacement.
The power and pressure switch connections will by-pass the old 9 pin wire harness and connect directly to the circuit board.
VersiHeat,HQ,15″x2″,9-Pin Retro-Fit Kit, Electronic
Specs
| Housing Configuration | Straight |
| Heater Length | 15″ |
| Lead End Terminal Location | 5-1/8″ |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 7-13/16″ From Leading End |
| Kilowatts | 1.375kW, 5.5kW |
| Voltage | 115v, 230v |
| Sensor Stud Location | 5-5/8″ |
| Sensor Stud Orientation | 6 O`Clock |
| Mounting Stud Type | None |
| Heater Size | 2″ |
| Heater Application | HydroQuip |
Note if replacing old discontinued heaters that need to be retrofitted to a 2 inch manifold such as 22-78A-040-0545, you would need this heater assembly 48-0007B along with a replacement hi limit sensor 34-0201B.
