Description

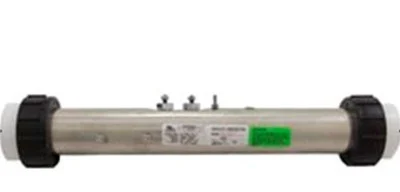

This Hydroquip 5.5kW heater 26-0800-7S-K is a 15″ x 2 1/4″ heater that operates at 230 volts.
Caldera/Nordic/Gecko S-Class heaterStainless steel 2-1/4″ x 15″ 5.5kW/230v replacement flow thru heater with aluminum ground bar, 1/8″npt pressure switch tap, (1) 10-32 x 1/2″ stud. 2″ heater tailpieces, split nuts and gaskets included. Pressure switch not included
Gecko S-Class Rpl, 15″x2-1/4″, 230v, 5.5kW, Gen2
Need a pressure switch? See 510AD0167.
Need jumper straps to replace the 2x copper heater strap connections? See 48-0023.
We also offer a ground bus bar if needed – NA-30
Bonding wire for grounding the heater 9219-010 though most heaters will already be grounded if they were originally installed correctly.
Replaces 2-00-7003 , 20-00250 , 20-00272 , 20-00274 , 20-00467 , 26-1008-7T-K , 530AA0107 , 610473 , 9142C , 9920-100339 , B24055LA5, C2550-0800-2, C2550-0800ET-G, C2550-0803A, HTR463711218 .
| Housing Configuration | Straight |
| Heater Length | 15″ |
| Lead End Terminal Location | 5-3/4″ |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 9-7/8″ From Leading End |
| Kilowatts | 1.375kW, 5.5kW |
| Voltage | 115v, 230v |
| Sensor Stud Orientation | None |
| Mounting Stud Type | Fixed |
| Heater Size | 2″ |
| Heater Application | Caldera, Gecko, Nordic |
