Description

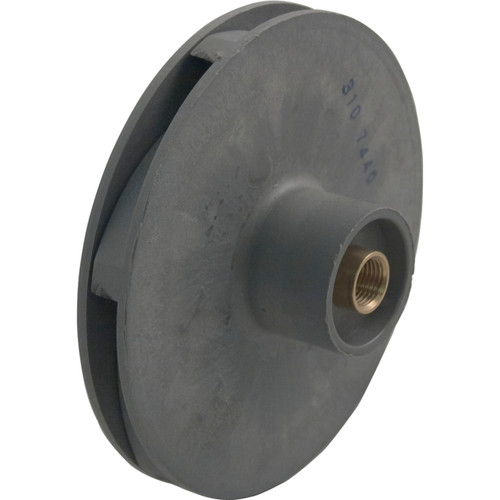

Waterway SVL56/Champion Pump Impeller
Closed face impeller made for the SVL56/Champion pump by Waterway Plastics.This impeller is rated at2.0hp, it is used in a Waterway SVL56 and Waterway Champion Pool pump body, and should be installed on a 2.0hp (or greater) square flange motor with a threaded shaft. Shaft seal sold separately
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-7/8″ |
| Vane Width ID | 5/16″ |
| Eye Diameter OD | 2-3/16″ |
| Eye Length | 9/16″ |
| Impeller Width OD | 5/8″ |
| Seal Seat Depth | 1-1/16″ |
| Shaft Length | n/a |
| Shaft Diameter OD | 5/8″ |
| Seal Seat Diameter OD | 1-1/2″ |
| Manufacturer | Waterway |
| Pump Application | SVL56 High Pressure |
